GM USA Satellite Radio And HMI 2.5, HMI 2.0 Module VIN Number Relearn DPS File

11 hours ago, UFO Locksmith said:

I want to buy this file but all HMI 2.0 and 2.5 do not look like the example picture listed.  The connectors are different.  Will this CAL work on the HMI hardware I have posted?





Yes the file will work fine on that HMI 2.5 module.

On 11/4/2023 at 3:19 AM, Troy said:



Hi, troy

 I installed the file and Im pulling my hair out can't reset the vin in the HMI module. I installed the zip file in the DPSarch folder, then loaded and watched the video. I tried  pins 1 and also 6-14. What am doing wrong?

thank you!



u a private message.

롬 라이터로 hmi2.5 emmc 데이터를 읽고 보관하려고합니다. 다른 hmi2.5 제품에 써서 사용하면 작동합니까?

나는 이것을 구입하고 싶지만 트로이는 대답이 없습니다

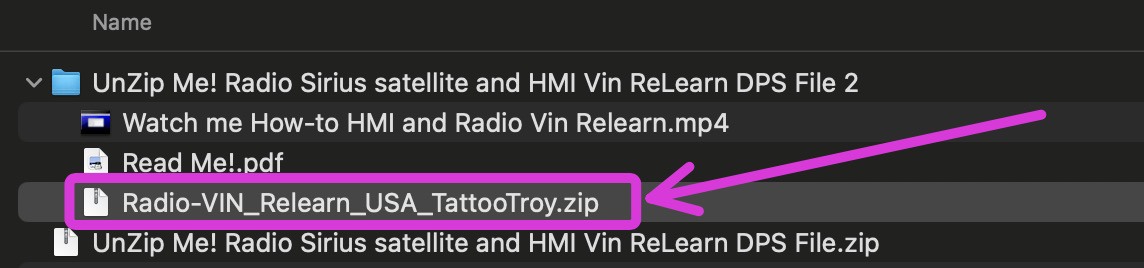

Hi, load the highlighted file into DPS and program the radio.

Watch the included video which demonstrates the process.

You’re welcome 👍.

Cual es la direccion del modulo a la q debo escribir ? What is the address of the module to which I should write?

1 hour ago, krlitros said:

Cual es la direccion del modulo a la q debo escribir ? What is the address of the module to which I should write?

Hi, can you read the “Read Me!.pdf” file, the instructions for using the file is in that PDF file.

thanks that works great

I have a question. I have a Cadillac XTS Platinum. the car had a 2.0 HMI, I replaced the HMI with 2.5,. I ran the DPS with a radio and VIN relearn, using the files you attached, and it worked fine and removed the theft lock. but the microphone doesn't work for phone calls.

What is the reason and what is the solution?

Note: When reinstalling the 2.0 HMI, the microphone works!

Very clear.. My car really does not have OnStar.

What are the steps to solve it?

Do I need a new calibrations file?

After investigation, it was revealed that my vehicle is not equipped with an OnStar Module (VCIM – Vehicle Communication Interface Module). The OnStar connection to the radio/HMI... The radio or HMI communicates with the OnStar module via the GMLAN network.

Therefore, when you change the radio or HMI (especially the HMI 2.5), some functions, such as the microphone and voice commands, may be affected if they are not properly aligned or programmed, because the audio passes through OnStar before the HMI. This means that the primary microphone is not directly connected to the HMI, but rather is used in conjunction with OnStar, Bluetooth, and Voice Commands. 😔 So I need a hmi firmware upgrade without OnStar to fixed mic and The firmware upgrade as @Last_Captain says, can be necesary to the audio of carplay and android auto works.

How do I get the correct calibration?

On 9/2/2025 at 6:33 AM, GM-Enthusiast said:

VIN?

2G6185S31D9212342
