GM Opel, Vauxhall Radio SilverBox, HMI 2.5 and HMI 2.0 module VIN number Relearn DPS file

thanks my friend for the file ? keep up

8 minutes ago, Karel klarenbeek said:

Does this work with a 2015 Tahoe? I bought a IO5 receiver, screen, and 2.5 HMI..



After programming it still says "Theft Locked"

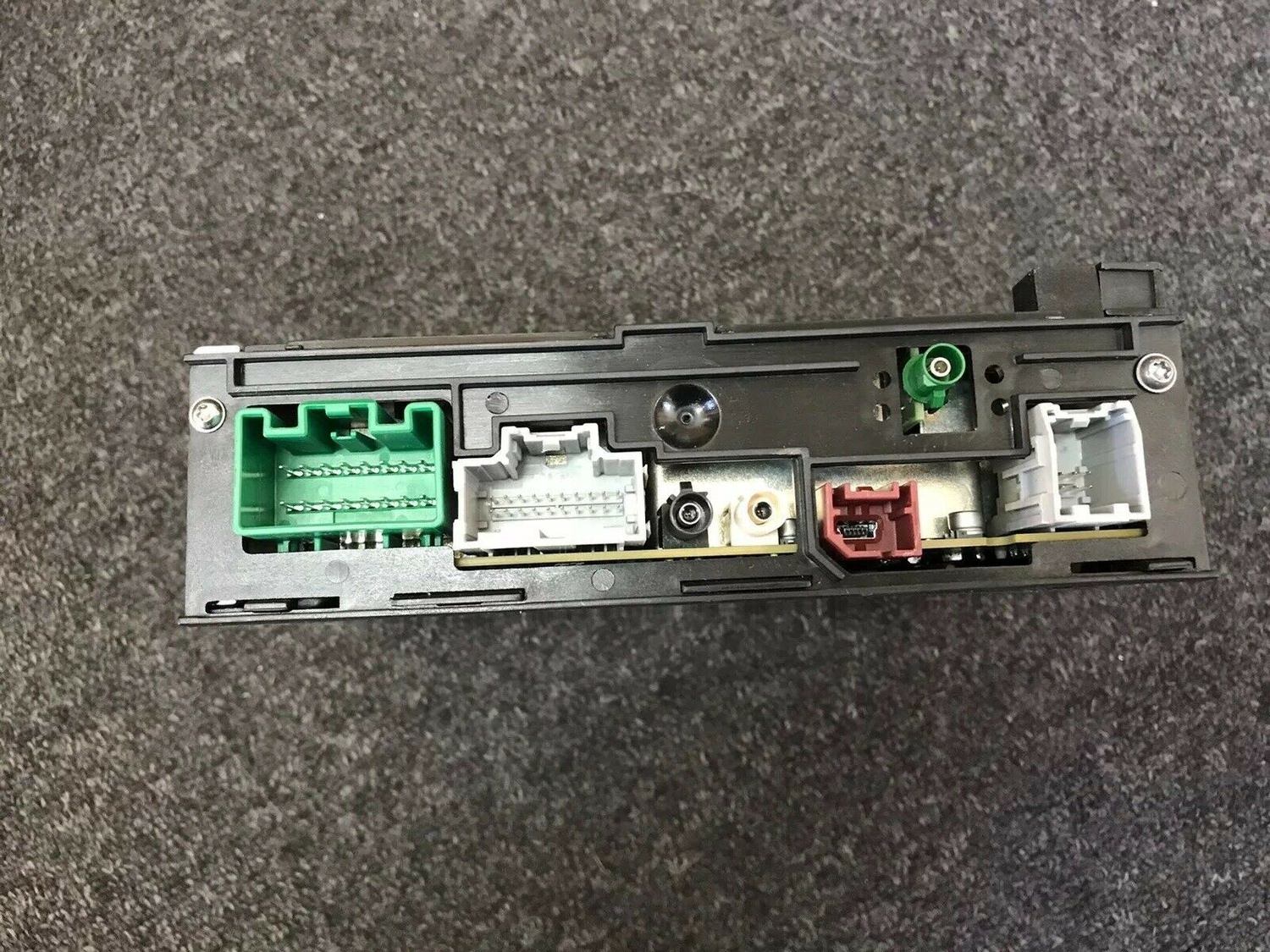

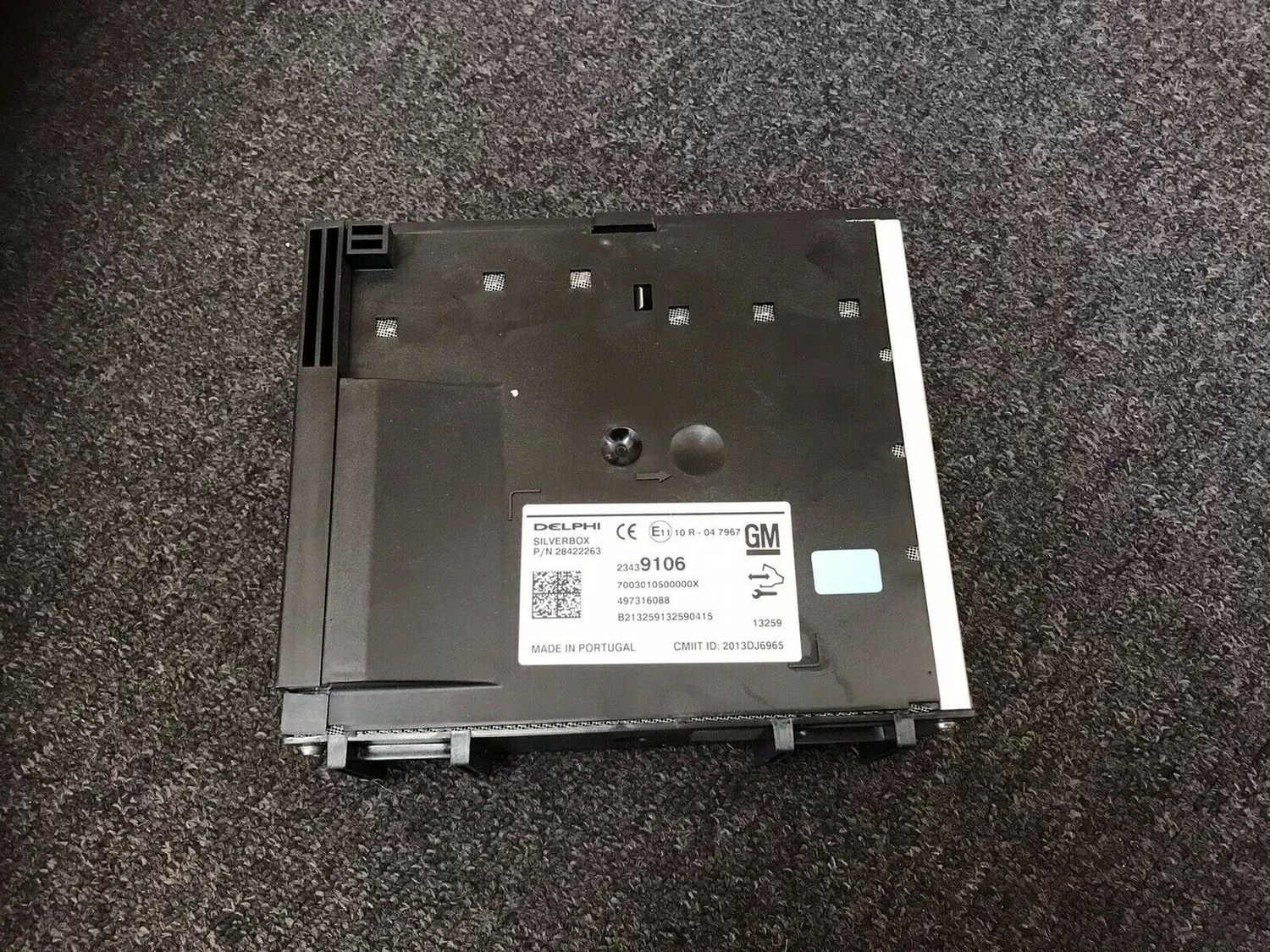

It only works with SilverBOX/radio module and HMI2.5 module.

If you're using it on the silverbox make sure to set DPS diagnostic pin to pin 1.

Also its best to use it while the modules are all connected in the car and not on the bench.

The file should work on all silver box IO6 with HMI 2.5.

Send me the DPS program log .txt file by PM

Hi, all.

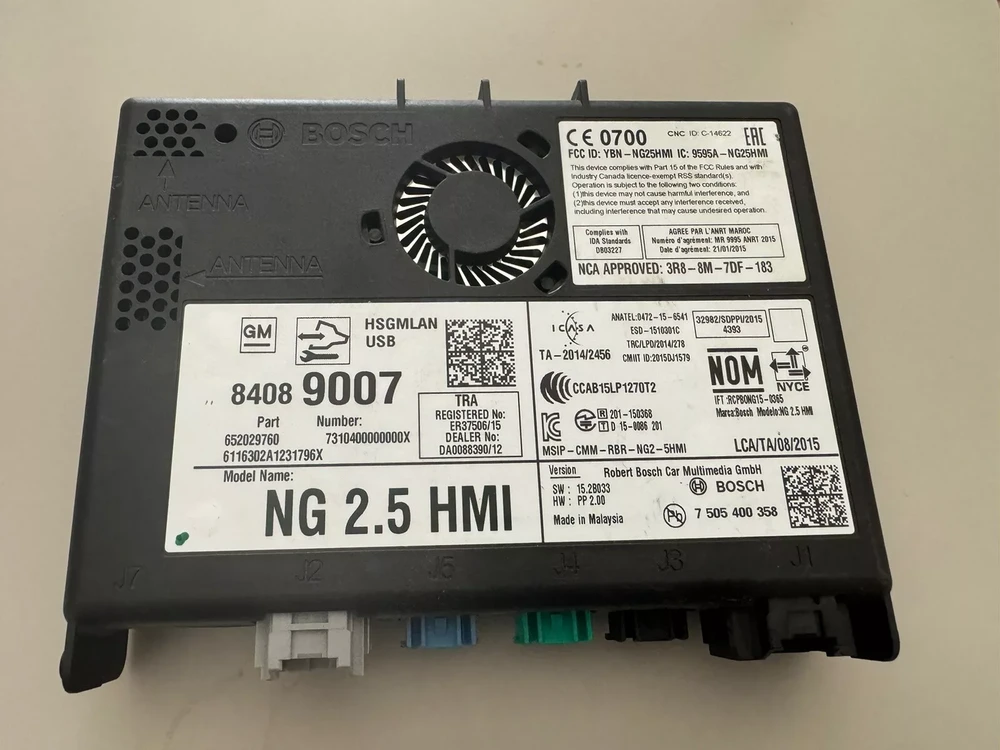

It's a Sirius satellite radio from USA cars ( GM84278532 ) , isn't a Silverbox. Completely another system.  HMI is IO5 2.5 ( GM84028495), no navigation module also from USA. In my opinion will work with HMI but not with radio.

20 minutes ago, grecu_o said:

Hi, all.



It's a Sirius satellite radio from USA cars ( GM84278532 ) , isn't a Silverbox. Completely another system.  HMI is IO5 2.5 ( GM84028495), no navigation module also from USA. In my opinion will work with HMI but not with radio.

Yes the USA and the EU HMI is the same so the HMI vin relearn file works fine, but the USA satellite radio module is different from the silverbox so this file doesn't works on the USA radio.

If anyone can provide a vin and program calibration files which gets left in the SPScache folder for the USA satellite radio module, I can use it to create a dps file that will relearn the vin on the USA radio modules.

Here is DPS file that will relearn the VIN and HMI for the USA satellite radio module.

Please unlock for download. Thanks.

Hi,

Is the touchpad function also included with this file?

Will the reversing camera also be activated?

Thx

53 minutes ago, dexxa9879 said:



Hi,

Is the touchpad function also included with this file?

Will the reversing camera also be activated?

Thx

Hi, no. This file only activate the HMI and radio module to learn the vin number that’s stored in the BCM, which removes the theft lock from a used module.  Reverse camera and touch pad has to do with HMI calibration files which I do not know how to.

Hi,

I have a US 2014 Chevy Camaro Radio part# 23184130 that needs vin edit,

Is there software for this?

Thanks

On 3/14/2022 at 5:30 AM, Carfixr1977 said:

Hi,

I have a US 2014 Chevy Camaro Radio part# 23184130 that needs vin edit,

Is there software for this?

Thanks

Hi, if the car uses the HMI v2 or HMI v2.5 module and the satellite radio module, you can use this file to relearn the vin in both HMI and the radio module.

Works, ty Troy.

Hi which tool are you using to connect obd? Thanks

VXdiag Nano GM, and drewtech mongoose works fine for me.

Hi Troy,

If I bought an HMI 2.5 from a Buick and want to install it in a GMC, will this solve the problem of showing Buick intellilink pieces and switch them to GMC intellilink?

6 hours ago, GMFanboy7331 said:

Hi Troy,

If I bought an HMI 2.5 from a Buick and want to install it in a GMC, will this solve the problem of showing Buick intellilink pieces and switch them to GMC intellilink?

This file only remove the security theft lock from a used HMI and radio module.
If your GMC originally came with the HMI 2.5, to get the gmc theme and logos onto the use HMI, you would need to use gm online sps service to program the hmi using your gmc’s vin.

4 minutes ago, Pedro222 said:

Hi

Which one I can use if I want to upgrade 2.0 to 2.5 and removing theft lock.

In the car was originally 2.5 system original module faulty

I got only 2.0 can be fitt?

Thanks

Hi, this file remove theft lock from both the HMI 2 and HMI 2.5.

2 hours ago, Jakobb said:

Hi,



I have Insignia A model year 2016 with dead HMI 2.5 unit (84089009 SW: 15.2B033, HW: PP 2.00). I have a spare HMI 2.5 from Insignia B year 2018 (84251842 SW: 17.1B010, HW: PP 2.00)



If I purchase the HMI Vin relearn file to remove the theft lock, is there a way or need to update the firmware for the HMI as it is from Insignia B? Or would it work right after the Vin relearn? Or should I try to get similar 84089009 unit that the car originally had?

Can the Vin relearn file to be used multiple times if I first try it with Insignia B HMI and if cannot get it working, use the relearn file again with another HMI unit?

Thanks for the help!

Hi, the HMI 2.5 from the insignia-B will work fine in the Insignia-A. You only need to change the VIN.

Yes, the VIN change file can be used multiple times.

About change VIN, this file is only for one module ? Sometime I need to change VIN from IPC, another time from EPS or SRS,...ECM, BCM.

Do I have to pay for each separately?
