Hello everyone,

Maybe somebody can help me,

I would like to retrofit TPMS in my Insignia 2014 which does not have tpms originally,
 I found the plug on the back behind the bumper and connected the module, check and power working after ignition on

I have replaced the 8'' cluster, which has pressure monitoring, but shows only dashes,

So now left BCM to activate,

I tried SPS config / setup there is a question if I have TPMS, and the whole configuration process,  but still nothing happens, will someone tell me exactly what to do, is this function in calibration?
 Thanks greetings

I do not intend to be rude but just to make sure that we start in the right end: Are you sure that your tire sensors are alive and activated? Are they also running on the correct frequency, i.e. 433 for Europe or 315 for US and is the receiver also on the same frequency?

On 10/24/2021 at 8:19 PM, M Ch said:

Hello everyone,

Maybe somebody can help me,

I would like to retrofit TPMS in my Insignia 2014 which does not have tpms originally,
 I found the plug on the back behind the bumper and connected the module, check and power working after ignition on

I have replaced the 8'' cluster, which has pressure monitoring, but shows only dashes,

So now left BCM to activate,

I tried SPS config / setup there is a question if I have TPMS, and the whole configuration process,  but still nothing happens, will someone tell me exactly what to do, is this function in calibration?
 Thanks greetings

Chevy Cruze Korean 2014 same your car. I replaced IPC have pressure monitoring & Config Setup BCM with TPMS. But it not working.

Hi

I find on BCM need replacing one block on right cali. with TPMS and on cluster need replacing two block on cali. if someone don't want replacing IPC

I'm retrofit successful.

What blocks need changing on Ipc as I’ve fitted 8” screen to mine and tpms has now gone

7 minutes ago, BadBoiDJ said:

What blocks need changing on Ipc as I’ve fitted 8” screen to mine and tpms has now gone

Hide or show on the IPC (Menu present, indicator, ..) You can run SPS Config & Setup IPC and choose option.

On 10/24/2021 at 8:19 PM, M Ch said:

Hello everyone,

Maybe somebody can help me,

I would like to retrofit TPMS in my Insignia 2014 which does not have tpms originally,
 I found the plug on the back behind the bumper and connected the module, check and power working after ignition on

I have replaced the 8'' cluster, which has pressure monitoring, but shows only dashes,

So now left BCM to activate,

I tried SPS config / setup there is a question if I have TPMS, and the whole configuration process,  but still nothing happens, will someone tell me exactly what to do, is this function in calibration?
 Thanks greetings

You should change 2 calibration (BCM Vehicle System Calibration & BCM Chassis Calibration) copy it from New Car have TPMS into your car need to active TPMS. And Reprogramming BCM by GM DPS



16 minutes ago, Hero Tran said:

Hide or show on the IPC (Menu present, indicator, ..) You can run SPS Config & Setup IPC and choose option.

I want the menu to show and the indicator as I have none. But I can’t sps my ipc as I’ve retrofitted the bigger screen

1 hour ago, BadBoiDJ said:

I want the menu to show and the indicator as I have none. But I can’t sps my ipc as I’ve retrofitted the bigger screen

Do you remember Old VIN of IPC bigger screen? Send me. I will help you get XMLFile (file config IPC).

On 12/14/2021 at 8:29 PM, M Ch said:

Hi

I find on BCM need replacing one block on right cali. with TPMS and on cluster need replacing two block on cali. if someone don't want replacing IPC

May you share exactly how you managed this? my MY2014 UK insignia doesn't have TPMS despite being an Elite and having the wiring.

@Vauxhall_Mark did you fit TPMS receiver? TPMS sensors installed?

23 minutes ago, Lyubomir Krastanov said:

@Vauxhall_Mark did you fit TPMS receiver? TPMS sensors installed?

Yes

these have tpms and come from 2014 Facelift Insignia, but is LHD



BCM Vehicle System Calibration	39069355
BCM Chassis Calibration	39069347

39069355.bin39069347.bin13591321utility.bin



these come from my car (2014 TPMS)and she have TPMS and is RHD and is same Utility as above

BCM Vehicle System Calibration	39069353
BCM Chassis Calibration	39069339





39069353.bin39069339.bin

17 minutes ago, Lyubomir Krastanov said:

these have tpms and come from 2014 Facelift Insignia, but is LHD



BCM Vehicle System Calibration	39069355
BCM Chassis Calibration	39069347

39069355.bin 593 B · 0 downloads 39069347.bin 625 B · 0 downloads 13591321utility.bin 4.58 kB · 0 downloads



these come from my car (2014 TPMS)and she have TPMS and is RHD and is same Utility as above

BCM Vehicle System Calibration	39069353
BCM Chassis Calibration	39069339





39069353.bin 598 B · 0 downloads 39069339.bin 624 B · 0 downloads

Amazing thanks, will these work for Auto Transmission?

That is something where I’m not aware, but may be @codebuilder can tweak them a bot and make them working

3 hours ago, Vauxhall_Mark said:

Amazing thanks, will these work for Auto Transmission?

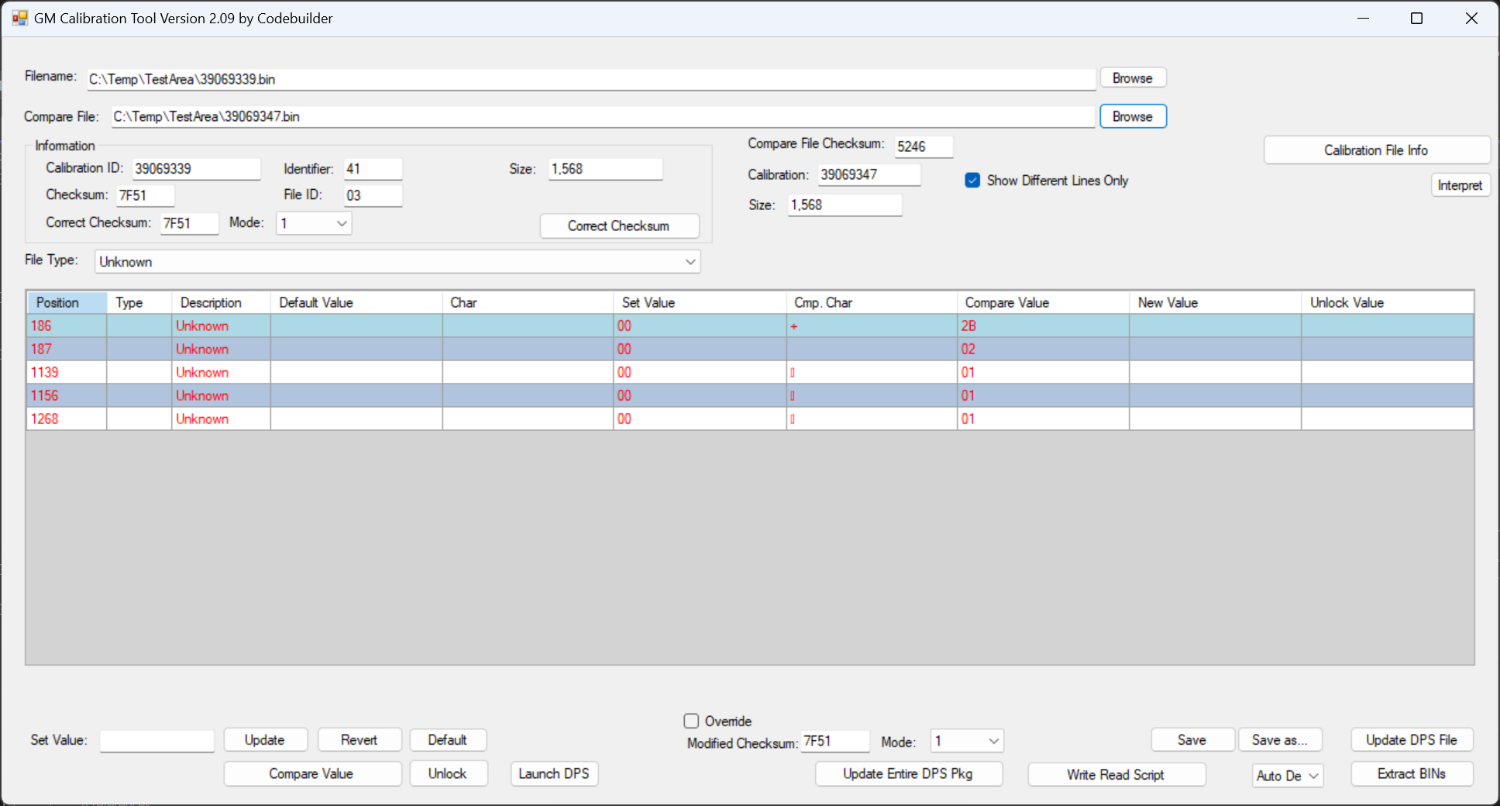

So, between (Chassis Calibration) 39069339 and 39069347, there's not much different!  The 01 flags might be something.  I would almost be tempted to load this calibration and see if it comes on.  If TPMS starts working, I can modify this file to have only the 01 flags and we can narrow it down from there.





3 hours ago, Vauxhall_Mark said:

Amazing thanks, will these work for Auto Transmission?

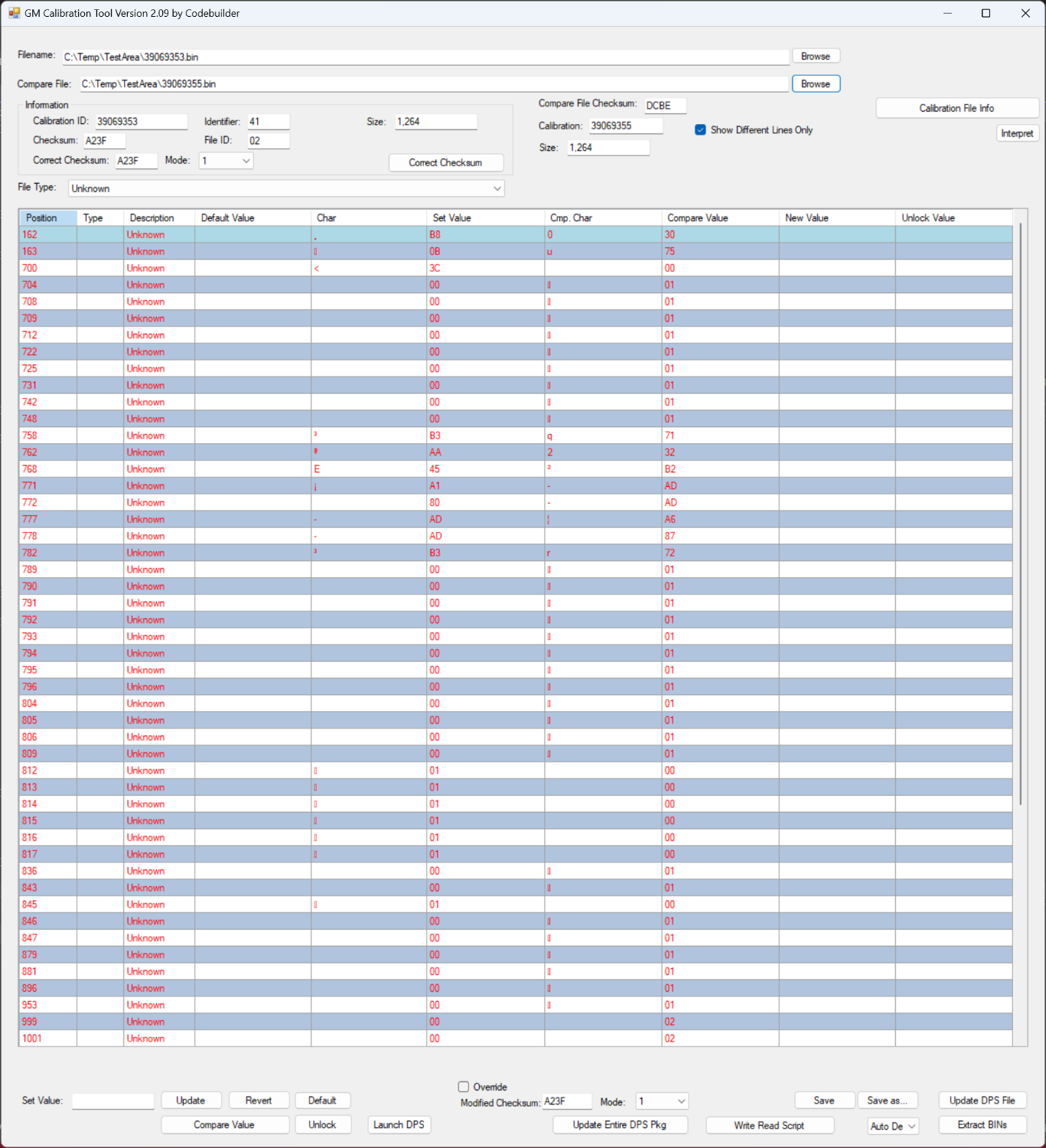

Now the other file, (Vehicle System Configuration), you can see between 39069353 and 39069355, there's quite a bit different.  I'm leaning it's more likely one of the 01 flags as well.  I would try the chassis configuration first.  I might even try one myself to see (but my vehicle and different calibrations).  I'd try Chassis Config since it's minimal and see if it comes on.





Provided files is come from LHD and RHd vehicle. That will be one of flags, as well there a other differences.

1 hour ago, Lyubomir Krastanov said:

Provided files is come from LHD and RHd vehicle. That will be one of flags, as well there a other differences.

Yeah, that's my worries on those crazy flags.  Some are 00 to 01 but the ones that aren't....  yeeeaaaahhhh...  I'd still try the one though and see what it does :).

these calibrations come from automatic with tpms





Insignia 2014 Automatic TPMS.rar

15 hours ago, codebuilder said:

So, between (Chassis Calibration) 39069339 and 39069347, there's not much different!  The 01 flags might be something.  I would almost be tempted to load this calibration and see if it comes on.  If TPMS starts working, I can modify this file to have only the 01 flags and we can narrow it down from there.





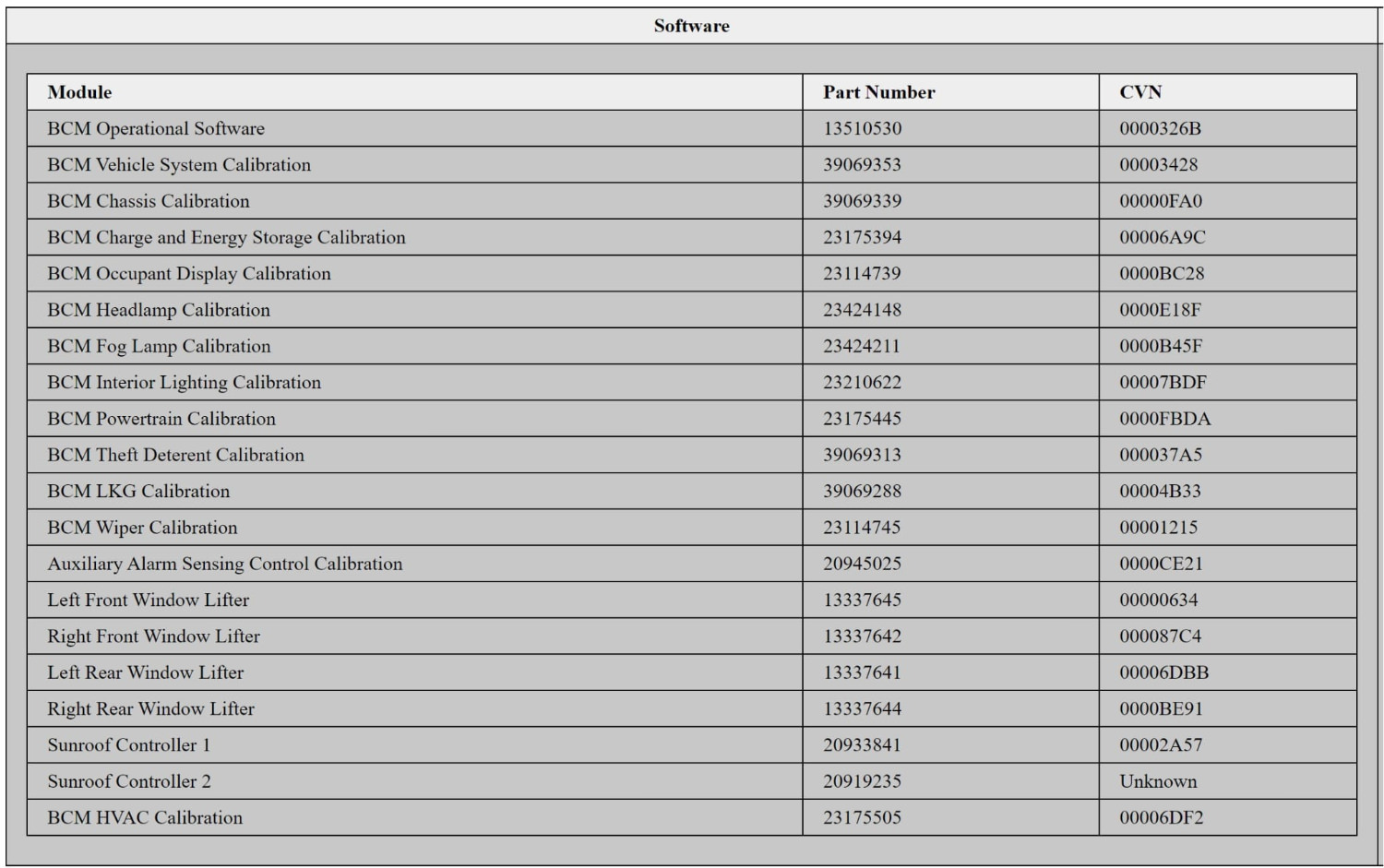

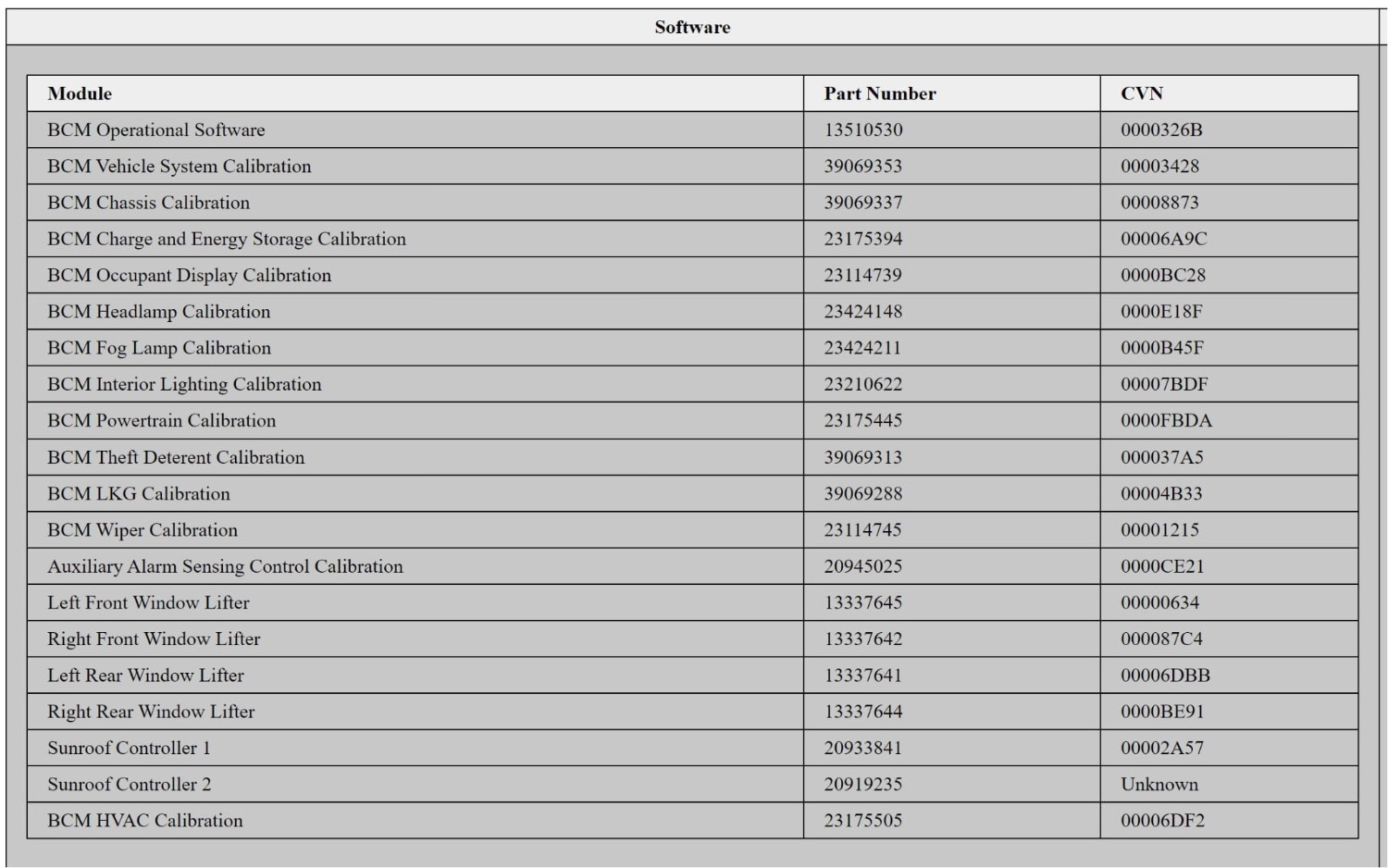

looking at my car vs one with same spec except TPMS looks like it's only chassis calibration thats the only difference

25 minutes ago, Lyubomir Krastanov said:

these calibrations come from automatic with tpms





Insignia 2014 Automatic TPMS.rar 826.53 kB · 0 downloads

Thank you kind sir.

30 minutes ago, Lyubomir Krastanov said:

these calibrations come from automatic with tpms





Insignia 2014 Automatic TPMS.rar 826.53 kB · 0 downloads

is it possible just to flash one block?

You can if operational software is same. As far as I’m aware differences is one calibration in BCM and 2 in IPC. But is possible I to be wrong. I usually do them via VCI and rarely taken eye on differences before. Now start to compile calibrations database. But will take a time.
