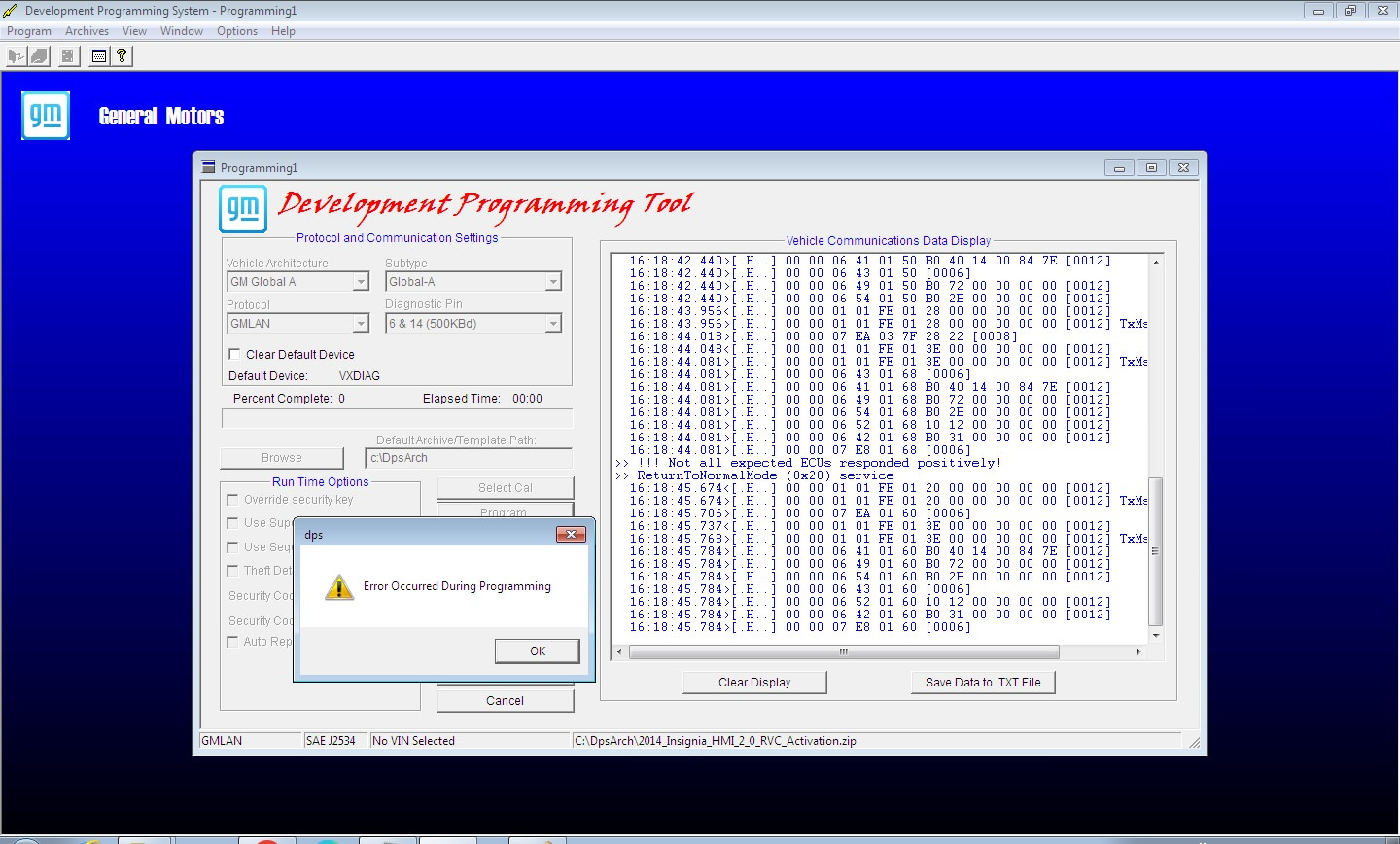

The A11 programmed fine but the HMI said there was an error programming.

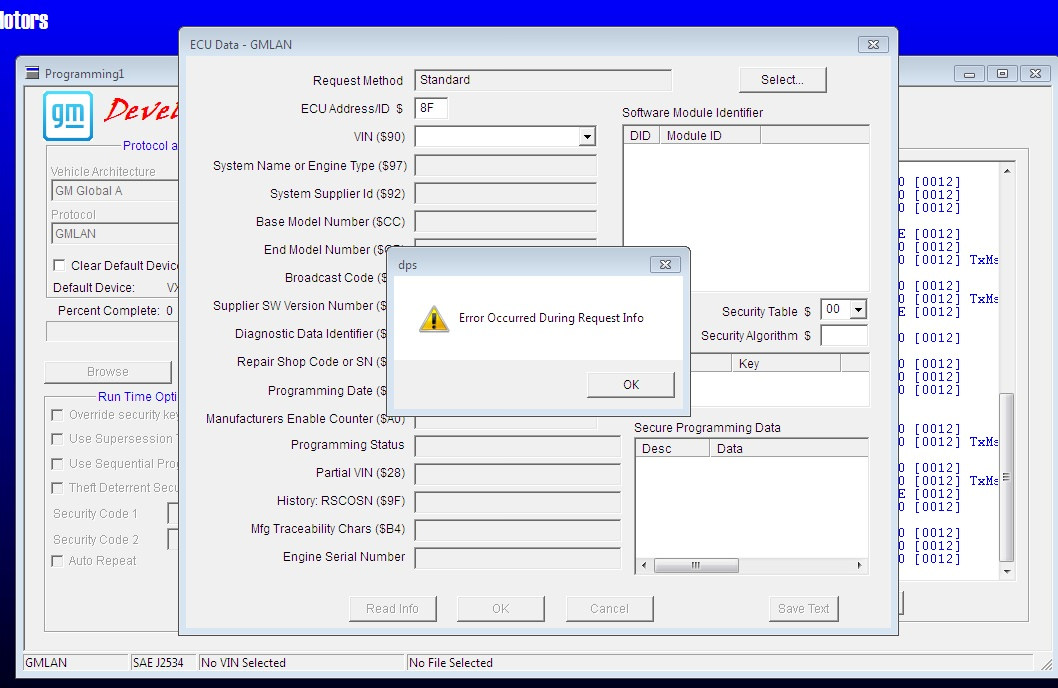

Now I cannot read the HMI and when i try to program it comes back with an error stating Not all ECUs responded properly.



Any ideas?



you have to choose the right pin and baud rate

On programming don’t opt for global a, leave as default and flash it.

5 hours ago, Ngọc Trần Trương said:

you have to choose the right pin and baud rate

This is what i used to flash A11 which worked, it's HMI i'm trying to flash on 6&14 I don't have any options for different baud rates for that.  Do you think I should reflash radio first any retry?

2 hours ago, Lyubomir Krastanov said:

On programming don’t opt for global a, leave as default and flash it.

My copy defaults to Global A, what options should my default be?

5 hours ago, Vauxhall_Mark said:

My copy defaults to Global A, what options should my default be?



2 hours ago, LLCasaol said:



Thanks I'll try that when I get home!

Tried again with thoae settings and same result.



Initializing Programming Session - v4.51.0000
Programming Initialization
Loading Calibration Files C:\DpsArch\2014_Insignia_HMI_2_0.zip!
The VIT2 does not contain Part Number Information (VIT not populated)!
>> DLL Path: C:\Program Files (x86)\GM\J2534Wrapper\J2534Wrapper.dll
>> C:\ProgramData\VCX\Apps\PASSTHRU\VCXPT32.dll
>> ALLScanner;VXDIAG;04.04;;
>> Firmware Version: 1.9.4.3 VCX-NANO N52GM20366, DLL Version: 04.04.210328, API Version: 04.04
>> Startup
>> Setup Base Mapping Matrix
>> Determine subnet configuration
  19:56:14.971<[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012]
  19:56:14.971>[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012] TxMsgType
>> Available subnets:  HS-CAN
  19:56:15.002<[.H..] 00 00 01 01 FE 02 1A B0 00 00 00 00 [0012]
  19:56:15.002>[.H..] 00 00 01 01 FE 02 1A B0 00 00 00 00 [0012] TxMsgType
  19:56:15.013>[.H..] 00 00 07 EA 03 5A B0 18 [0008]
  19:56:15.237>[.H..] 00 00 07 E8 03 5A B0 11 [0008]
  19:56:15.237>[.H..] 00 00 06 52 03 5A B0 8F 00 00 00 00 [0012]
  19:56:15.237>[.H..] 00 00 06 41 03 5A B0 40 14 00 84 7E [0012]
  19:56:15.237>[.H..] 00 00 06 42 03 5A B0 31 00 00 00 00 [0012]
  19:56:15.237>[.H..] 00 00 06 43 03 5A B0 28 [0008]
  19:56:15.237>[.H..] 00 00 06 54 03 5A B0 2B 00 00 00 00 [0012]
  19:56:15.237>[.H..] 00 00 06 49 03 5A B0 72 00 00 00 00 [0012]
>> Base Mapping Matrix:
>> ECU 0x18 on HS-CAN (ReqCANId: 0x000007E2, RspCANId: 0x000007EA)
>> ECU 0x11 on HS-CAN (ReqCANId: 0x000007E0, RspCANId: 0x000007E8)
>> ECU 0x8F on HS-CAN (ReqCANId: 0x00000252, RspCANId: 0x00000652)
>> ECU 0x40 on HS-CAN (ReqCANId: 0x00000241, RspCANId: 0x00000641)
>> ECU 0x31 on HS-CAN (ReqCANId: 0x00000242, RspCANId: 0x00000642)
>> ECU 0x28 on HS-CAN (ReqCANId: 0x00000243, RspCANId: 0x00000643)
>> ECU 0x2B on HS-CAN (ReqCANId: 0x00000254, RspCANId: 0x00000654)
>> ECU 0x72 on HS-CAN (ReqCANId: 0x00000249, RspCANId: 0x00000649)
>> InitiateDiagnosticOperation (0x10) service with sub-func. 0x02 (disableAllDTCs)
  19:56:16.739<[.H..] 00 00 01 01 FE 02 10 02 00 00 00 00 [0012]
  19:56:16.739>[.H..] 00 00 01 01 FE 02 10 02 00 00 00 00 [0012] TxMsgType
  19:56:16.848>[.H..] 00 00 07 EA 03 7F 10 12 [0008]
  19:56:16.879<[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012]
  19:56:16.911>[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012] TxMsgType
  19:56:16.911>[.H..] 00 00 07 E8 01 50 [0006]
  19:56:16.911>[.H..] 00 00 06 41 01 50 B0 40 14 00 84 7E [0012]
  19:56:16.911>[.H..] 00 00 06 52 03 7F 10 12 00 00 00 00 [0012]
  19:56:16.911>[.H..] 00 00 06 43 01 50 [0006]
  19:56:16.911>[.H..] 00 00 06 54 01 50 B0 2B 00 00 00 00 [0012]
  19:56:16.911>[.H..] 00 00 06 49 01 50 B0 72 00 00 00 00 [0012]
  19:56:18.424<[.H..] 00 00 01 01 FE 01 28 00 00 00 00 00 [0012]
  19:56:18.424>[.H..] 00 00 01 01 FE 01 28 00 00 00 00 00 [0012] TxMsgType
  19:56:18.456>[.H..] 00 00 07 EA 03 7F 28 22 [0008]
  19:56:18.487<[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012]
  19:56:18.518>[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012] TxMsgType
  19:56:18.518>[.H..] 00 00 07 E8 01 68 [0006]
  19:56:18.518>[.H..] 00 00 06 43 01 68 [0006]
  19:56:18.518>[.H..] 00 00 06 41 01 68 B0 40 14 00 84 7E [0012]
  19:56:18.518>[.H..] 00 00 06 54 01 68 B0 2B 00 00 00 00 [0012]
  19:56:18.518>[.H..] 00 00 06 49 01 68 B0 72 00 00 00 00 [0012]
  19:56:18.518>[.H..] 00 00 06 52 01 68 10 12 00 00 00 00 [0012]
  19:56:18.518>[.H..] 00 00 06 42 01 68 B0 31 00 00 00 00 [0012]
>> !!! Not all expected ECUs responded positively!
>> ReturnToNormalMode (0x20) service
  19:56:20.143<[.H..] 00 00 01 01 FE 01 20 00 00 00 00 00 [0012]
  19:56:20.143>[.H..] 00 00 01 01 FE 01 20 00 00 00 00 00 [0012] TxMsgType
  19:56:20.174>[.H..] 00 00 07 EA 01 60 [0006]
  19:56:20.206<[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012]
  19:56:20.237>[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012] TxMsgType
  19:56:20.237>[.H..] 00 00 07 E8 01 60 [0006]
  19:56:20.237>[.H..] 00 00 06 41 01 60 B0 40 14 00 84 7E [0012]
  19:56:20.237>[.H..] 00 00 06 54 01 60 B0 2B 00 00 00 00 [0012]
  19:56:20.237>[.H..] 00 00 06 49 01 60 B0 72 00 00 00 00 [0012]
  19:56:20.237>[.H..] 00 00 06 43 01 60 [0006]
  19:56:20.237>[.H..] 00 00 06 42 01 60 B0 31 00 00 00 00 [0012]
  19:56:20.237>[.H..] 00 00 06 52 01 60 10 12 00 00 00 00 [0012]


I'm wondering if perhaps the Radio didn't program correctly?

Unplug the radio conectors and try programming with DPS without ACC.

So tried everything I can think of. I disconnected the silverbox that didn't work either.



Tried another silverbox which obviously came up with theft lock. Tried programming again with new radio in theft lock status, same result.

Changed VIN on new A11 radio and flashed to get off the theft lock, still same result.



I can only assume that the HMI unit is faulty? I have another one but it's an HMI2.5 but I don't have the correct calibration files for that to test it.

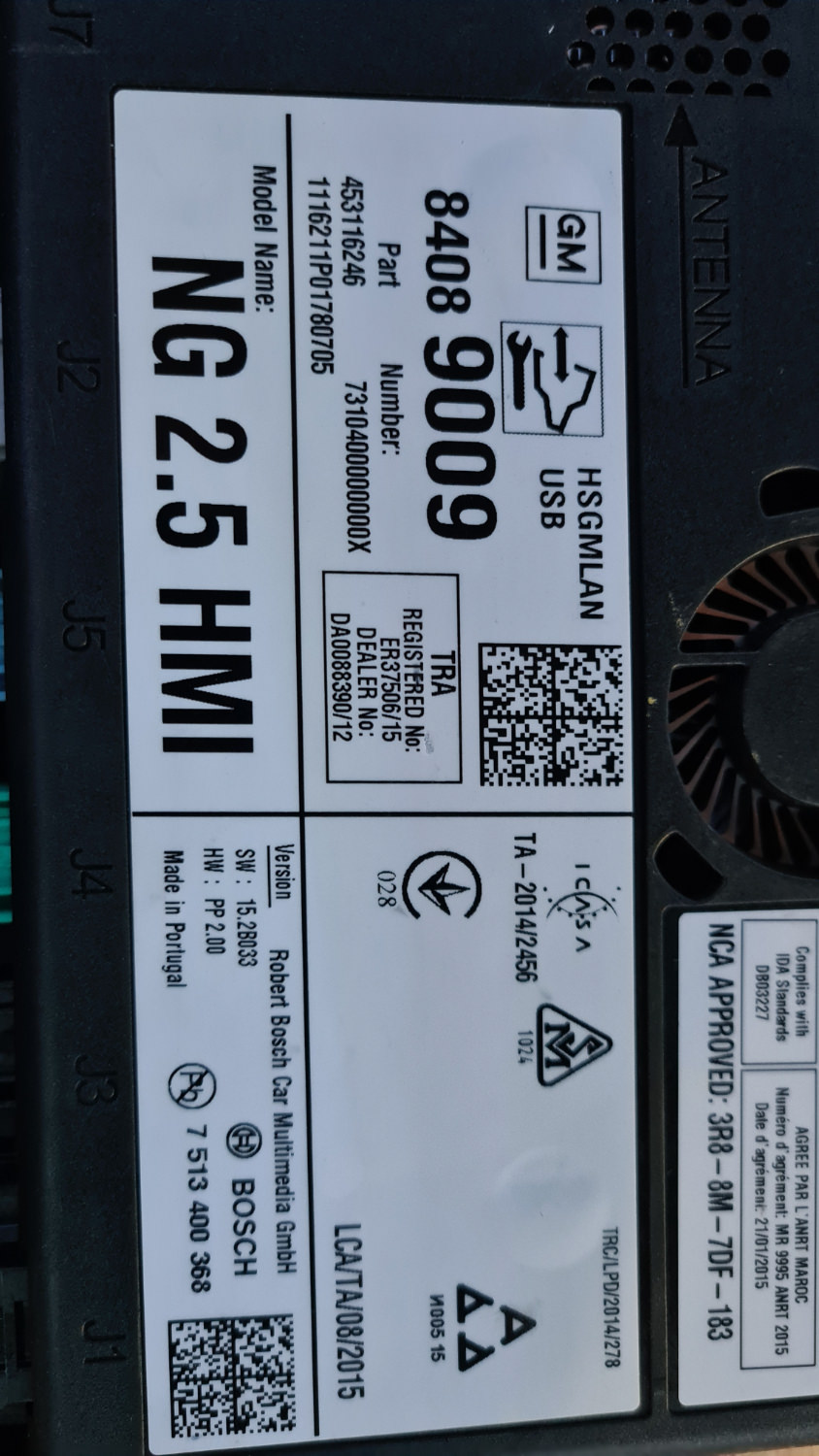

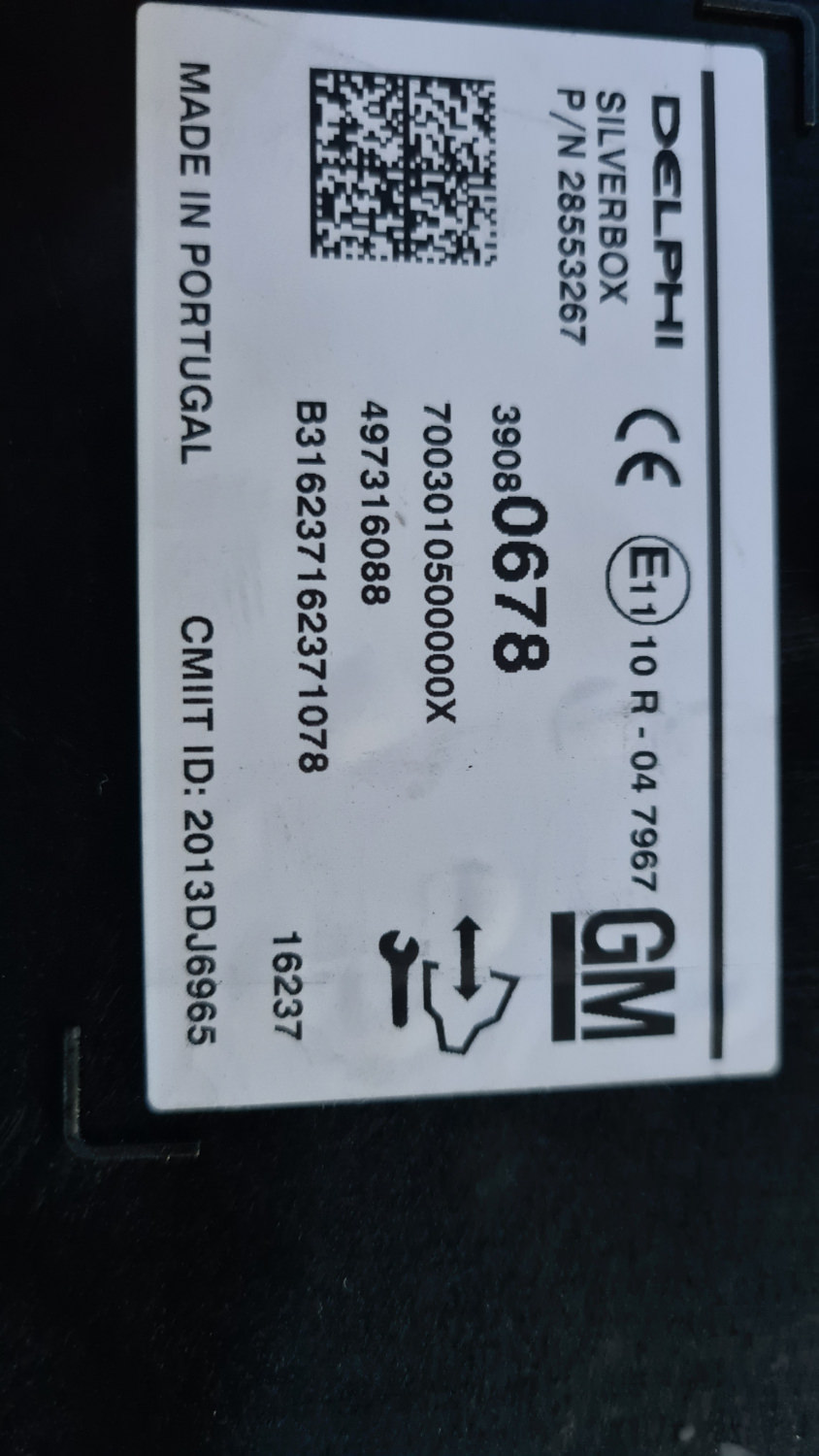

Attached are pics of the replacement HMI and Radio if someone could supply the calibration files to try those that would be amazing.

Calibration depend of car where will be installed.

6 minutes ago, Lyubomir Krastanov said:

Calibration depend of car where will be installed.

Oh sorry, Into my car which is W0LGT8EM1E1046713

5 hours ago, Vauxhall_Mark said:

Oh sorry, Into my car which is W0LGT8EM1E1046713

Try W0LGT8ES9E1196857 that has the same equipment.

On 8/1/2023 at 6:32 PM, Vauxhall_Mark said:

I can only assume that the HMI unit is faulty?









Check if the HMI has +12V and(ACC)

2 hours ago, Mindaugas Cernius said:

Check if the HMI has +12V and(ACC)

I tried again with radio disconnected and no ACC and I get a different error



Initializing Programming Session - v4.51.0000
Programming Initialization
Loading Calibration Files C:\DpsArch\2014_Insignia_HMI_2_0_RVC_Activation.zip!
The VIT2 does not contain Part Number Information (VIT not populated)!
>> DLL Path: C:\Program Files (x86)\GM\J2534Wrapper\J2534Wrapper.dll
>> C:\ProgramData\VCX\Apps\PASSTHRU\VCXPT32.dll
>> ALLScanner;VXDIAG;04.04;;
>> Firmware Version: 1.9.4.3 VCX-NANO N52GM20366, DLL Version: 04.04.210328, API Version: 04.04
>> Startup
>> Setup Base Mapping Matrix
>> Determine subnet configuration
  22:35:36.517<[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012]
  22:35:36.517>[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012] TxMsgType
>> Available subnets:  HS-CAN
  22:35:36.548<[.H..] 00 00 01 01 FE 02 1A B0 00 00 00 00 [0012]
  22:35:36.548>[.H..] 00 00 01 01 FE 02 1A B0 00 00 00 00 [0012] TxMsgType
  22:35:36.580>[.H..] 00 00 06 41 03 5A B0 40 14 00 84 7E [0012]
>> Base Mapping Matrix:
>> ECU 0x40 on HS-CAN (ReqCANId: 0x00000241, RspCANId: 0x00000641)
>> InitiateDiagnosticOperation (0x10) service with sub-func. 0x02 (disableAllDTCs)
  22:35:38.095<[.H..] 00 00 01 01 FE 02 10 02 00 00 00 00 [0012]
  22:35:38.095>[.H..] 00 00 01 01 FE 02 10 02 00 00 00 00 [0012] TxMsgType
  22:35:38.142>[.H..] 00 00 06 41 01 50 B0 40 14 00 84 7E [0012]
  22:35:38.173<[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012]
  22:35:38.205>[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012] TxMsgType
  22:35:39.720<[.H..] 00 00 01 01 FE 01 28 00 00 00 00 00 [0012]
  22:35:39.720>[.H..] 00 00 01 01 FE 01 28 00 00 00 00 00 [0012] TxMsgType
  22:35:39.767>[.H..] 00 00 06 41 01 68 B0 40 14 00 84 7E [0012]
  22:35:39.798<[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012]
  22:35:39.830>[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012] TxMsgType
>> ReportProgrammedState (0xA2) service
  22:35:41.392<[.H..] 00 00 01 01 FE 01 A2 00 00 00 00 00 [0012]
  22:35:41.392>[.H..] 00 00 01 01 FE 01 A2 00 00 00 00 00 [0012] TxMsgType
  22:35:41.736>[.H..] 00 00 06 41 02 E2 00 40 14 00 84 7E [0012]
  22:35:41.767<[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012]
  22:35:41.798>[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012] TxMsgType
>> Number of detected programmable ECUs: 1
  22:35:43.377<[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012]
>> Enable Programming Mode
>> ProgrammingMode (0xA5) service with sub-func. 0x01 (requestProgrammingMode) on HS/MS-CAN
  22:35:43.487<[.H..] 00 00 01 01 FE 02 A5 01 00 00 00 00 [0012]
  22:35:43.487>[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012] TxMsgType
  22:35:43.487>[.H..] 00 00 01 01 FE 02 A5 01 00 00 00 00 [0012] TxMsgType
  22:35:44.736>[.H..] 00 00 06 41 01 E5 00 40 14 00 84 7E [0012]
  22:35:44.767<[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012]
  22:35:44.798>[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012] TxMsgType
  22:35:46.423<[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012]
>> ProgrammingMode (0xA5) with sub-func. 0x03 enableProgrammingMode)
  22:35:46.455<[.H..] 00 00 01 01 FE 02 A5 03 00 00 00 00 [0012]
  22:35:46.455>[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012] TxMsgType
  22:35:46.455>[.H..] 00 00 01 01 FE 02 A5 03 00 00 00 00 [0012] TxMsgType
  22:35:48.158<[.H..] 00 00 01 01 FE 01 3E 00 00 00 00 00 [0012]
>> Enable MixedFormatFrames (ignore failure)!
Establishing Connections
Preparing Controller
Utility File:  22892123_Utility.BIN
Utility File Step=01 Opcode=01
>> Target address 0x008F not in mapping matrix!
Utility File Step=02 Opcode=F1
Utility File Step=03 Opcode=F2
Utility File Step=04 Opcode=34
>> !!! ReqCANId not set (simulate timeout)!
Utility File Step=2B Opcode=FB
Utility File Step=2C Opcode=FC
  22:35:48.673>[.H..] 00 00 01 01 FE [0005] ExtAddress TxDone TxMsgType
Utility File Step=02 Opcode=F1
Utility File Step=03 Opcode=F2
Utility File Step=04 Opcode=34
>> !!! ReqCANId not set (simulate timeout)!
Utility File Step=2B Opcode=FB
Utility File Step=2C Opcode=FC
Utility File Step=02 Opcode=F1
Utility File Step=03 Opcode=F2
Utility File Step=04 Opcode=34
>> !!! ReqCANId not set (simulate timeout)!
Utility File Step=2B Opcode=FB
Utility File Step=2D Opcode=EE
>> ReturnToNormalMode (0x20) service
  22:36:01.283<[.H..] 00 00 01 01 FE 01 20 00 00 00 00 00 [0012]
  22:36:01.283>[.H..] 00 00 01 01 FE 01 20 00 00 00 00 00 [0012] TxMsgType
