IMMO Immobiliser learn, Insignia Buick regal and others

is that revised version as previous not working on every car due Security code been in calibrations somewhere?

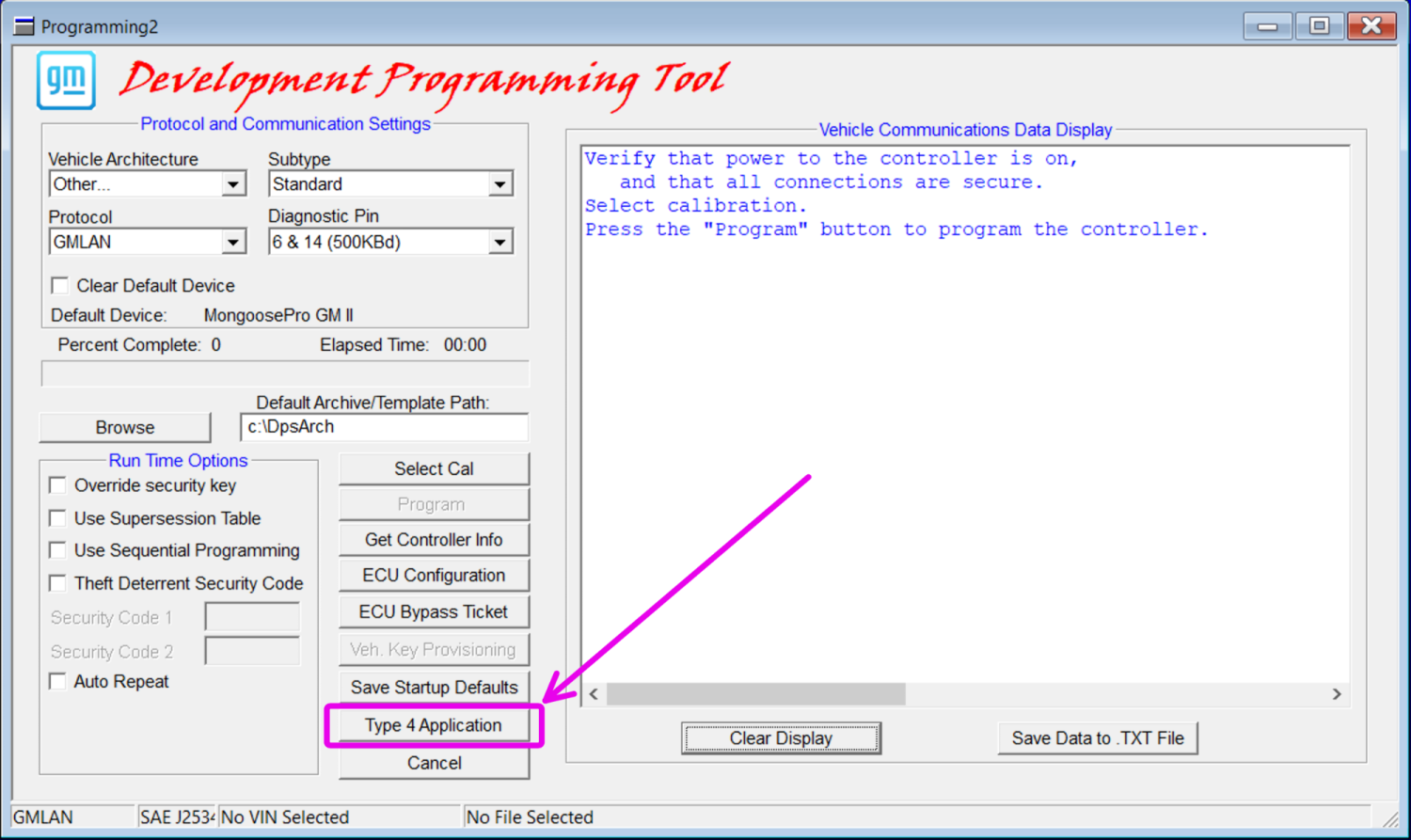

Hello, I did a key binding on GMC terrain, I still have files with Type4 and spsdebug, you can somehow collect files for use on such machines yet.

Do i something wrong or is this not compatible with Astra K? FE05 Security Code Input Incorrect

U have to input your code in left side on dps main screen where say Security code 1/2

Oh 😅

For the Cluster Immo relearn in need to do the last one right?

Yes and need to have all car keys present.

On 7/21/2023 at 9:01 PM, Robikiller 1 said:

Oh 😅

For the Cluster Immo relearn in need to do the last one right?

Can anyone do a "step by step" on how to relearn existing keys? I need to relearn my keys to eliminate the incorrect identifier error in BCM and IPC and I still don't have a clear idea of how to do it

6 minutes ago, Arbe_gtc said:

step by step

The program actually says everything you need to do

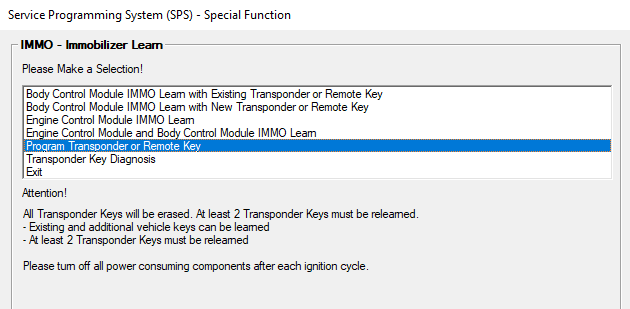

-Program Transponder or Remote Key -> Next

wait 12 min

-All key's deleted

-Programm first Key

-Programm another key -> YES

-Programm another key -> NO (or if you want a third Key then YES)

-sync Key -> YES

-sync another Key -> YES

-sync another Key -> NO (or if you want a third Key then YES)

-last test if all key's start the car an you are finished

That's roughly how it works if I haven't done anything wrong

I relearnd my Key's successfully but the Cluster still have the wrong Immo. I dont know why😥

On 7/22/2023 at 11:01 PM, Robikiller 1 said:

I relearnd my Key's successfully but the Cluster still have the wrong Immo. I dont know why😥

So i got the Cluster Immo Programmed, thx to @Troy

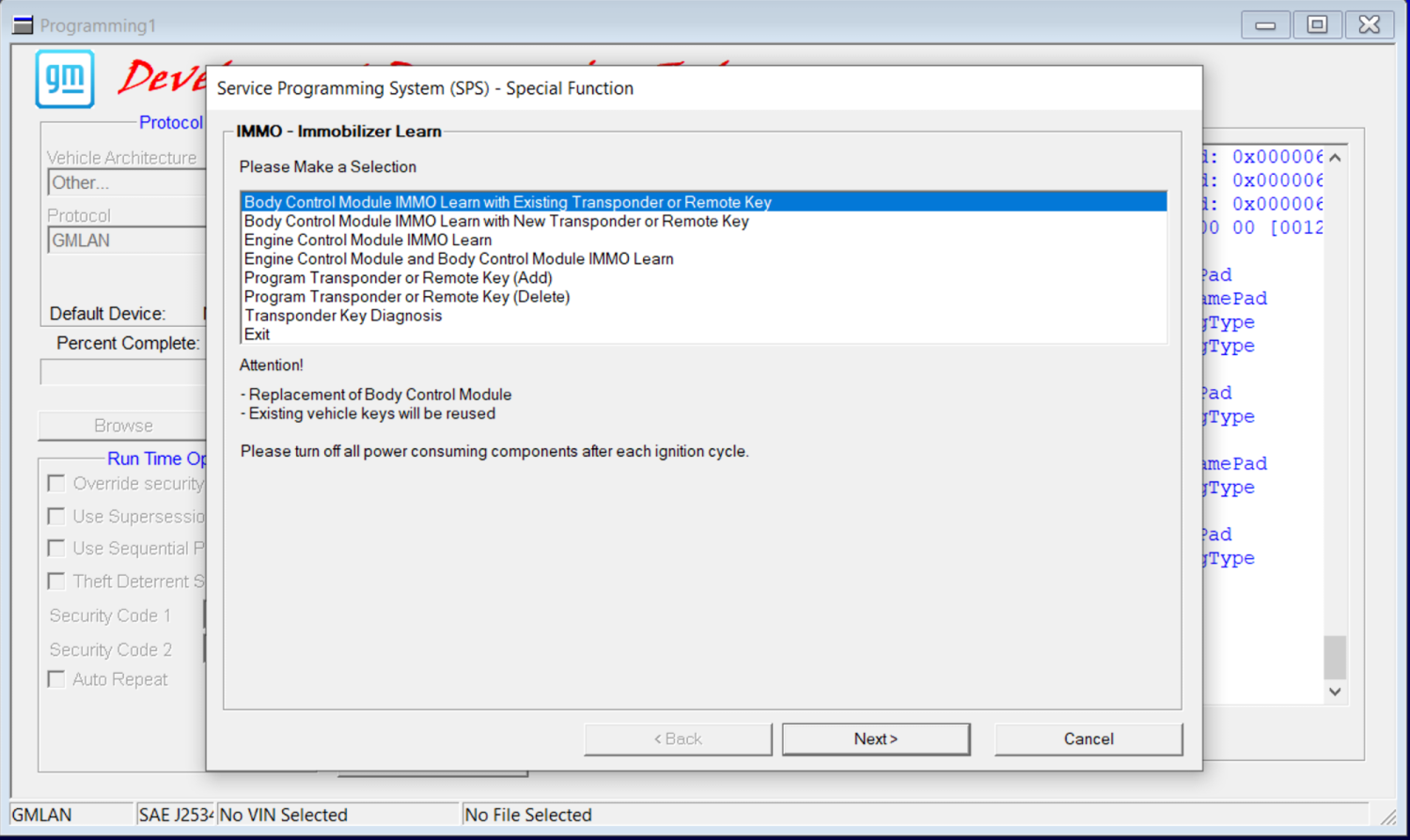

I used "Engine Control and Body Control Module IMMO Learn"

21 hours ago, Robikiller 1 said:

So i got the Cluster Immo Programmed, thx to @Troy

I used "Engine Control and Body Control Module IMMO Learn"

Let's see if I have time to try and remove that error.

today i relearned the keys OK, but the process its a little confuse. the DTC of incorret inmobiliser, resolved.

my car have keyless, and the 2 keys working OK

@Arbe_gtc what did you mean is little confusing?

1 hour ago, Lyubomir Krastanov said:

@Arbe_gtc what did you mean is little confusing?

When it comes to following the steps set out by the program, some instructions are not entirely clear and can lead to confusion. at least in Spanish... but, the keys have been relearned correctly and the error has disappeared 🙂

Thank you Troy for the file 👍 Successfully programmed new key fob in Opel Insignia 2015 keyless, using Tactrix Openport interface
