Hello people,



I thought I'd drop a post on here to see if anyone here had an experience enabling the Climate menu on IOB radio, specifically for Astra K.

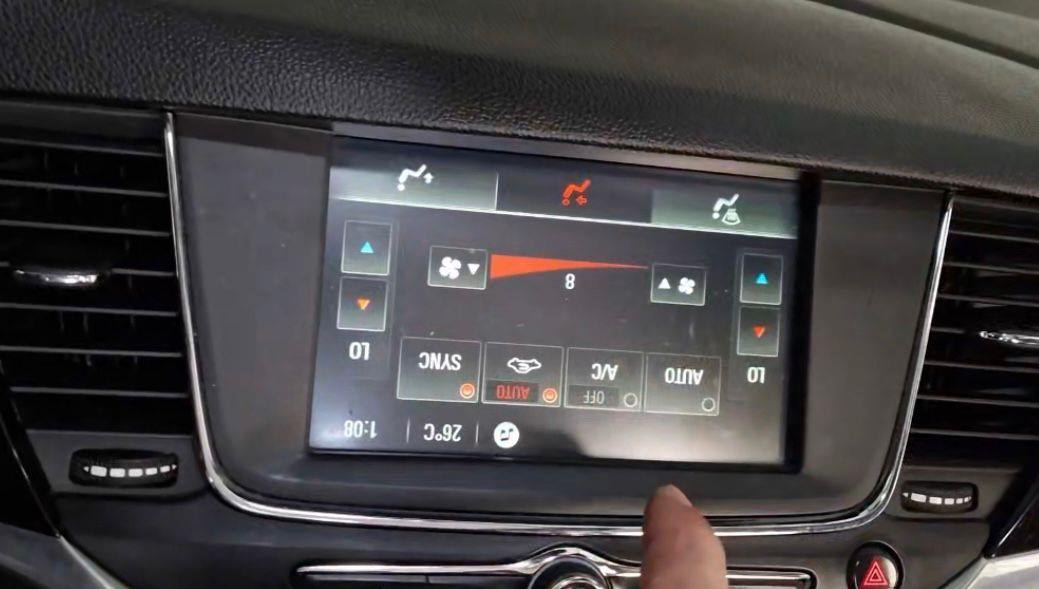

I understand that Insignia-B with IOB and CJ2 usually have the climate menu enabled, although when I was testing insignia-B calibration onto Astra K, the display was somehow changed upside down, I didn't get much luck with changing varies calibration so far. This is what the climate menu looks like after insignia-B case was programmed in.



I will probably have more time this weekend to investigate it further, for now I am wondering if anyone has attempted these climate menu.



Thanks!

Hello, i am test the same, Can you send me the File for test it on my Astra K?

2 hours ago, tobiasp said:

Hello, i am test the same, Can you send me the File for test it on my Astra K?

I haven’t done a lot on it just yet. I do have files with identical RPOs from both Astra K + insignia (+CJ2) that I need to make a breakdown to identify the bytes for the climate menu.


I only know that insignia B have 7 speakers but it doesn’t affect software wise.

Hy,

I have on my Astra K 2018 IOU in the Car the Software for the Menü works on the Display. The HAVAC Module need another Software

2 hours ago, Opelinsignia1985 said:

I need to make a breakdown to identify the bytes for the climate menu

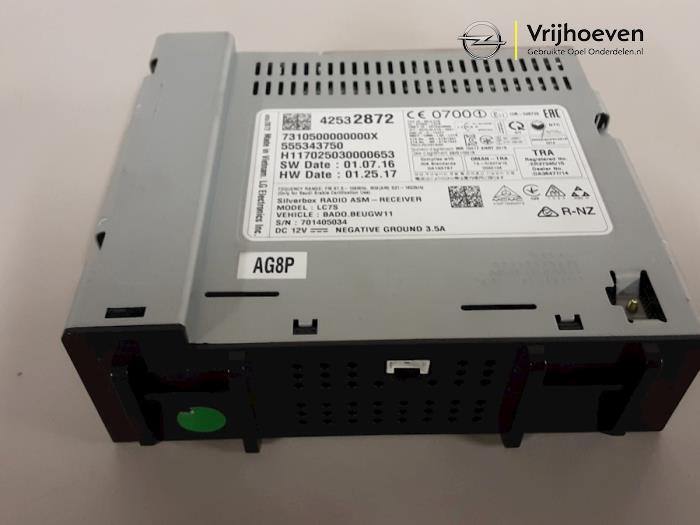

The problem is, in the IOB/IOR radio types like this:



The calibrations are signed. Cant be Edited. Then, you cant find differences to enable or disable options

I have the Newer one  IOU (Harmann). I need files for the Havac Modul for this. The Radio Modul have the Radio have the Options aktivated.



Ah and the Wiring is another From Insignia and Astra K

23 hours ago, Arbe_gtc said:



The problem is, in the IOB/IOR radio types like this:







The calibrations are signed. Cant be Edited. Then, you cant find differences to enable or disable options

That's interesting, so it is even harder to change the logo on IOB. Look like we have to find a way to get the custom calibration signed somehow..

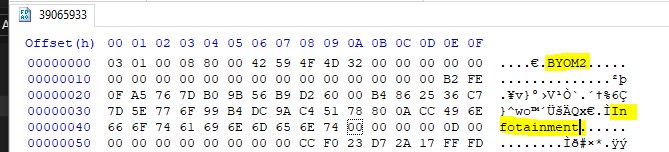

Identifying which calibrations are signed and which are not is quite simple. If you open the calibration and see this:



It's signed.

This happens on some units, not all. (Serial Data Gateway, some engine control units like E88, R4 Radio (ior,iob), Harman Info3 Radio (ios iot iou)



And for the moment, it seems unlikely that such encryption can be broken.



You need to replace some calibration files without changing them and try to flash them. There was such a problem, but everything was solved by firmware

2 hours ago, T_Ivan said:

You need to replace some calibration files without changing them and try to flash them. There was such a problem, but everything was solved by firmware

I’ve tried this, it isn’t easy though as the climate menu is in insignia B models, however I able to understand which calibration have climate menu but it was these calibrations that cause the display to be upside down.





8 minutes ago, Opelinsignia1985 said:

I’ve tried this, it isn’t easy though as the climate menu is in insignia B models, however I able to understand which calibration have climate menu but it was these calibrations that cause the display to be upside down.





Show me the calibration numbers you have?

10 hours ago, T_Ivan said:

Show me the calibration numbers you have?

Astra K IOB: UZ6, UC3, EU1, CJ2, UE1, U2Q

Software Module 3	39139421	Unknown
Software Module 4	39171660	Unknown
Software Module 5	39065923	Unknown
Software Module 6	39065926	Unknown
Software Module 7	39186150	Unknown
Software Module 8	39065933	Unknown
Software Module 9	39140854	Unknown
Software Module 10	39065930	Unknown
Software Module 11	39040387	Unknown
Software Module 12	39139424	Unknown
Software Module 13	39135003	Unknown





Insignia B IOB: U65, UC3, EU1, CJ2

Software Module 3	39139421	Unknown
Software Module 4	39162976	Unknown
Software Module 5	39121668	Unknown
Software Module 6	39065259	Unknown
Software Module 7	39115822	Unknown
Software Module 8	39019537	Unknown
Software Module 9	39115767	Unknown
Software Module 10	39065262	Unknown
Software Module 11	39052792	Unknown
Software Module 12	39139424	Unknown
Software Module 13	39121671	Unknown

Hallo,

any Progress here? Does anyone has more infos about the Signiture of the Calibrations files? Or what file does what?
