I'm going to create a bench setup for Global-B architecture modules for experiments and hacking, and I will be buying some modules.

Does anyone know if the 2022 Chevy Silverado 2500 a Global-B architecture vehicle?

Its Global B,, All Modules Data Use Serial Data Gateway Module....

6 hours ago, LLCasaol said:

Its Global B,, All Modules Data Use Serial Data Gateway Module....

Thanks for that info. So the serial data module is only used in Global-B vehicles?

Yes Troy as i offer you before also, you can connect (teamviewer) with me to any GM truck 2015-2022 to do whatever you want to.

Okay today i will pull some files from 2022 tahoe and send you

8 minutes ago, Last Captain said:

Yes Troy as i offer you before also, you can connect (teamviewer) with me to any GM truck 2015-2022 to do whatever you want to.

Okay today i will pull some files from 2022 tahoe and send you



Thanks. I want to start figuring out how to change VIN and PIN in global-B modules, I need to have a working bench setup as a remote connection won't be the best way.



2 hours ago, Last Captain said:

Yes Troy as i offer you before also, you can connect (teamviewer) with me to any GM truck 2015-2022 to do whatever you want to.

Okay today i will pull some files from 2022 tahoe and send you

You are not correct. Latest Global A vehicles have SGM too. Please check Cadillac XT6 for example

2022 Silverado 2500 is not Global B. Silverado 1500 on the other hand is.

2 hours ago, Galaxie said:

2022 Silverado 2500 is not Global B. Silverado 1500 on the other hand is.

Cool thanks for that info. Yeah I was told that 2022 Silverado is Global-A 5 byte seed.

On 15/2/2023 at 15:41, Galaxie said:

2022 Silverado 2500 no es Global B. Silverado 1500, por otro lado, sí lo es.

I am working on a 2022 GMC SIERRA 1500, the PCM is an E90 and it is GLOBAL B.

SEED 31 byte and KEY 12 byte

   SEED
$000BCB8F000052002E005504240114A61C8BAE09119E643E30CFA61ABA13D2

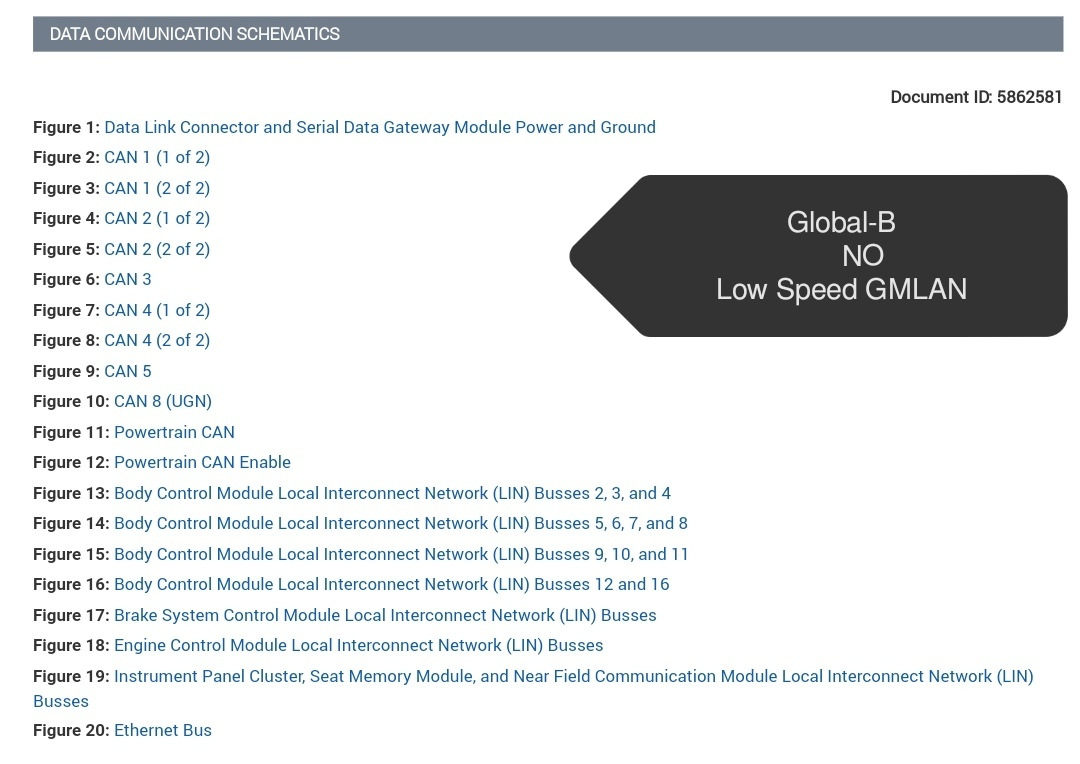

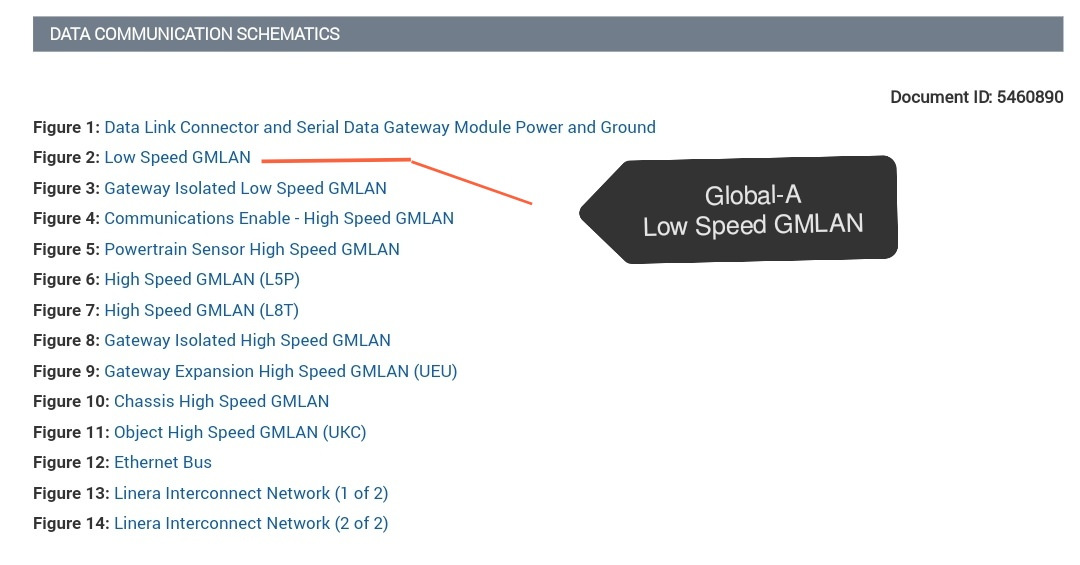

Let me clear confusion here, its not technically answer but it clears confusion,

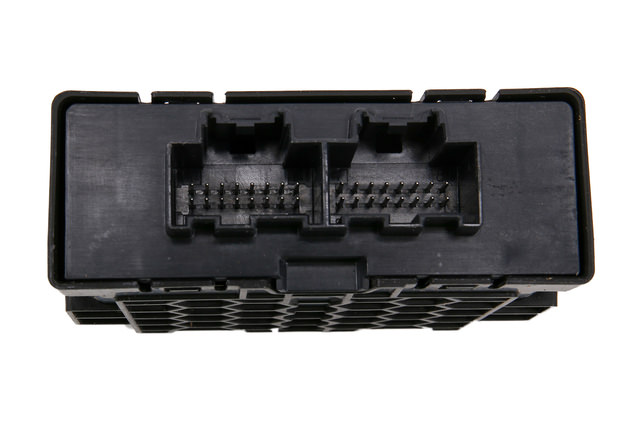

SDGM with 2 connectors is Global-A

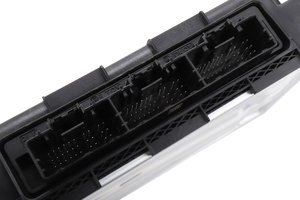

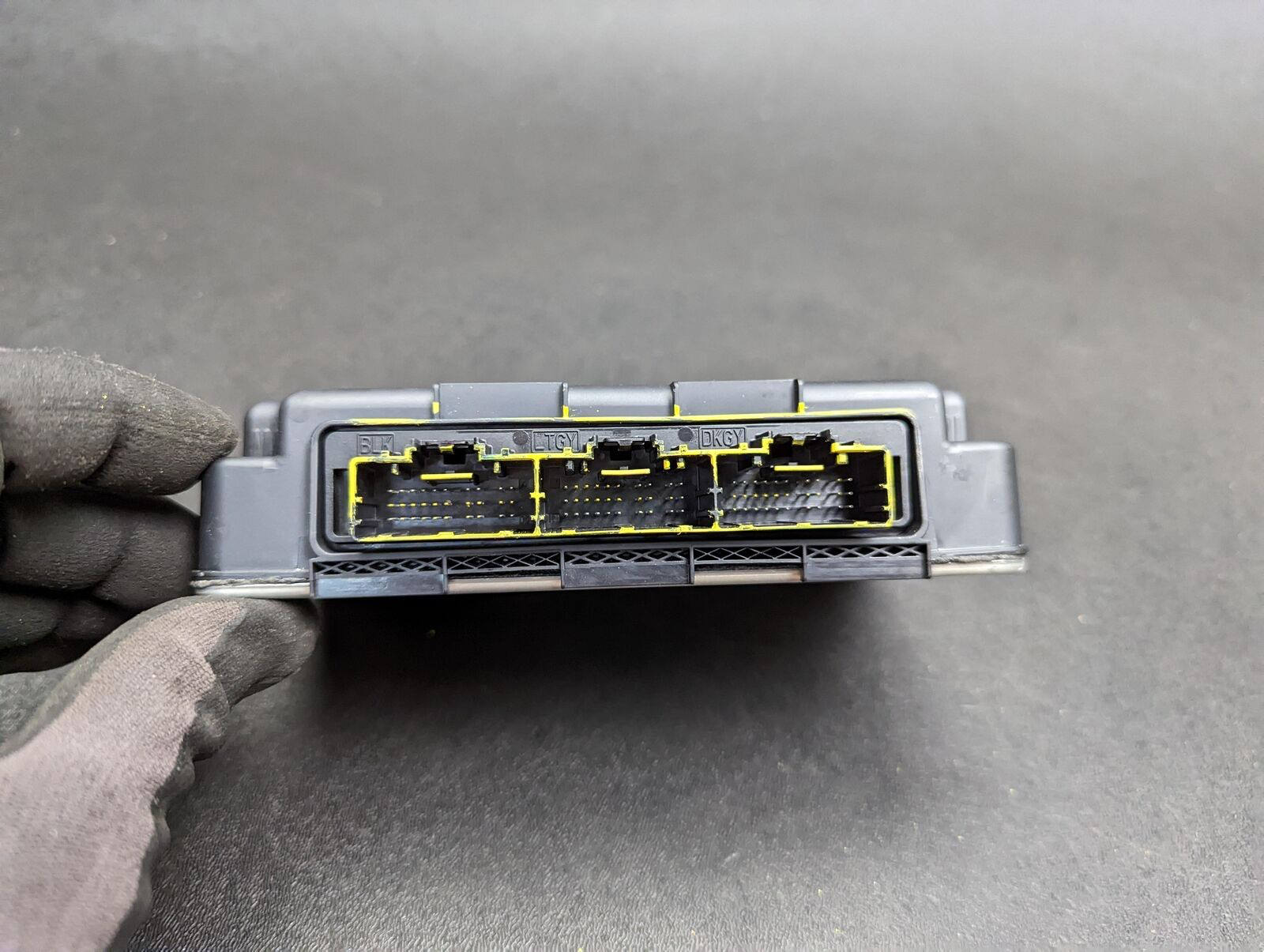

SDGM with 3 connectors is Global-B



There's actually another one too...  The 2020 GMC shows a Gen 3 (not sure if there's even more!). Long story short but I've found out doing a different project.  Anyways, I got one from a 2019 Spark 1.4L which I believe is a Gen 2 and it only had two connectors but WAY more wires (more links to different busses) and doesn't quite operate the same.  It also wanted an MDI 2 (I only have a 1).  Anyways, I ended up buying one from a 2016 after which was a Gen 1 for what I need :).  I can pull the diagrams up for them as well if needed.  I tried using the Gen 3 but I was wasting too much time so threw it aside :).

Sometimes for diagnostic purpose I use MDI 1 with Global B (sometimes too lazy to go for MDI2). MDI 1 can't work with Ethernet bus only. For programming Global B I use MDI 2 only.

GM models using the VIP architecture include (Global B):



Buick

• 2021-2023 Envision



Cadillac

• 2023 LYRIQ
• 2021-2023 Escalade
• 2020-2023 CT4
• 2020-2023 CT5



Chevrolet

• 2023 Colorado
• 2022-2023 Silverado 1500
• 2021-2023 Tahoe and Suburban
• 2020-2023 Corvette



GMC

• 2023 Canyon
• 2022-2023 HUMMER EV
• 2022-2023 Sierra 1500
• 2021-2023 Yukon

The timelines below for HS CAN Bus used on GM vehicles.



HS GMLAN … – Non SDGM - GMLANs accessible at the DLC

HS GMLAN … – Gen 1 SDGM – Infotainment isolation only, primary network testing still available at the DLC.

Gen 2 SDGMs – Not installed in any production GM vehicles.

HS GMLAN 2018 – Current Global “A” – Gen 3 SDGM - Complete network isolation.

CAN & CAN FD - VIP ( Global “B” vehicles) Select 2019 to 2022 models – VIP SDGM - Complete network isolation.

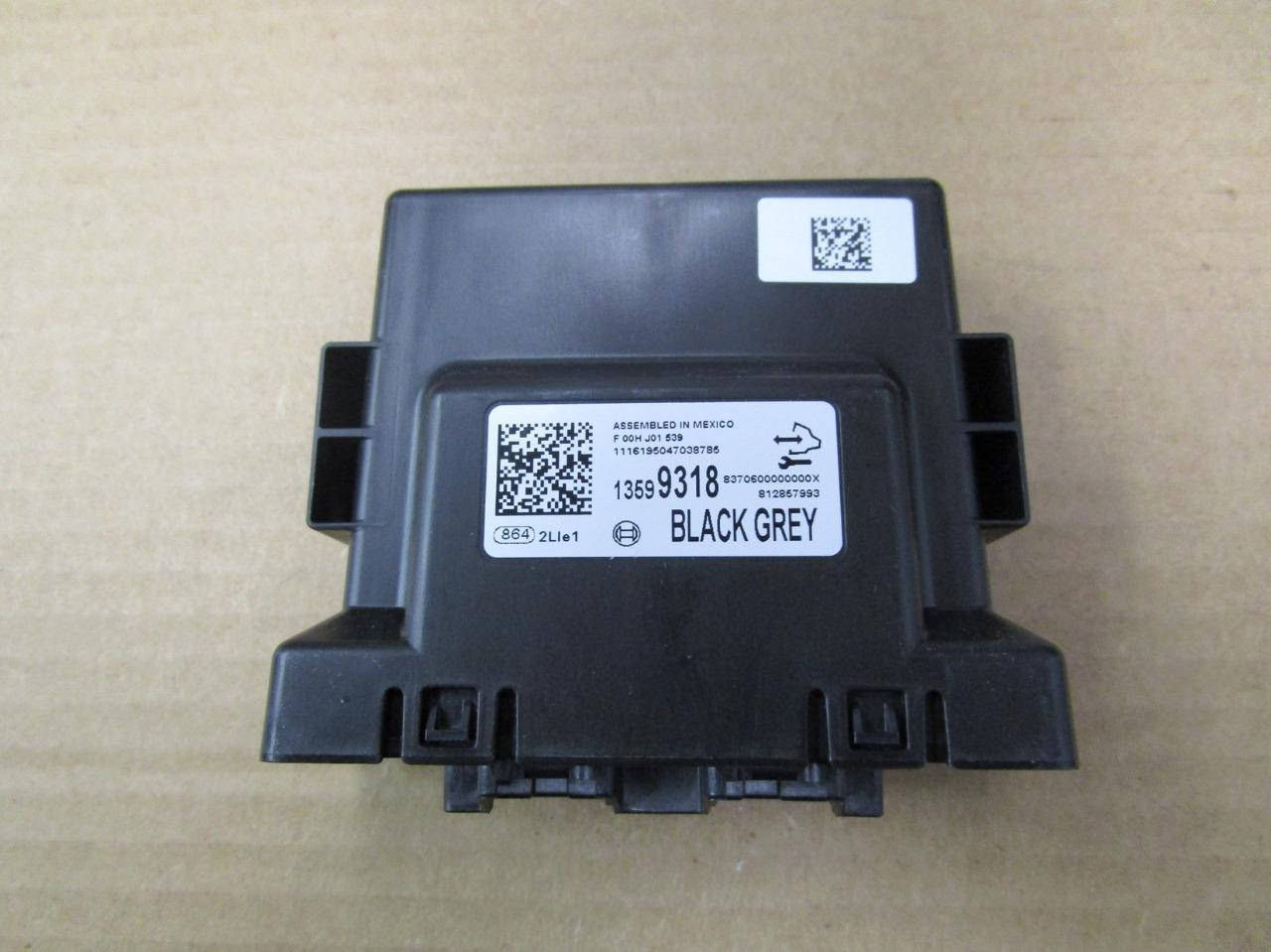

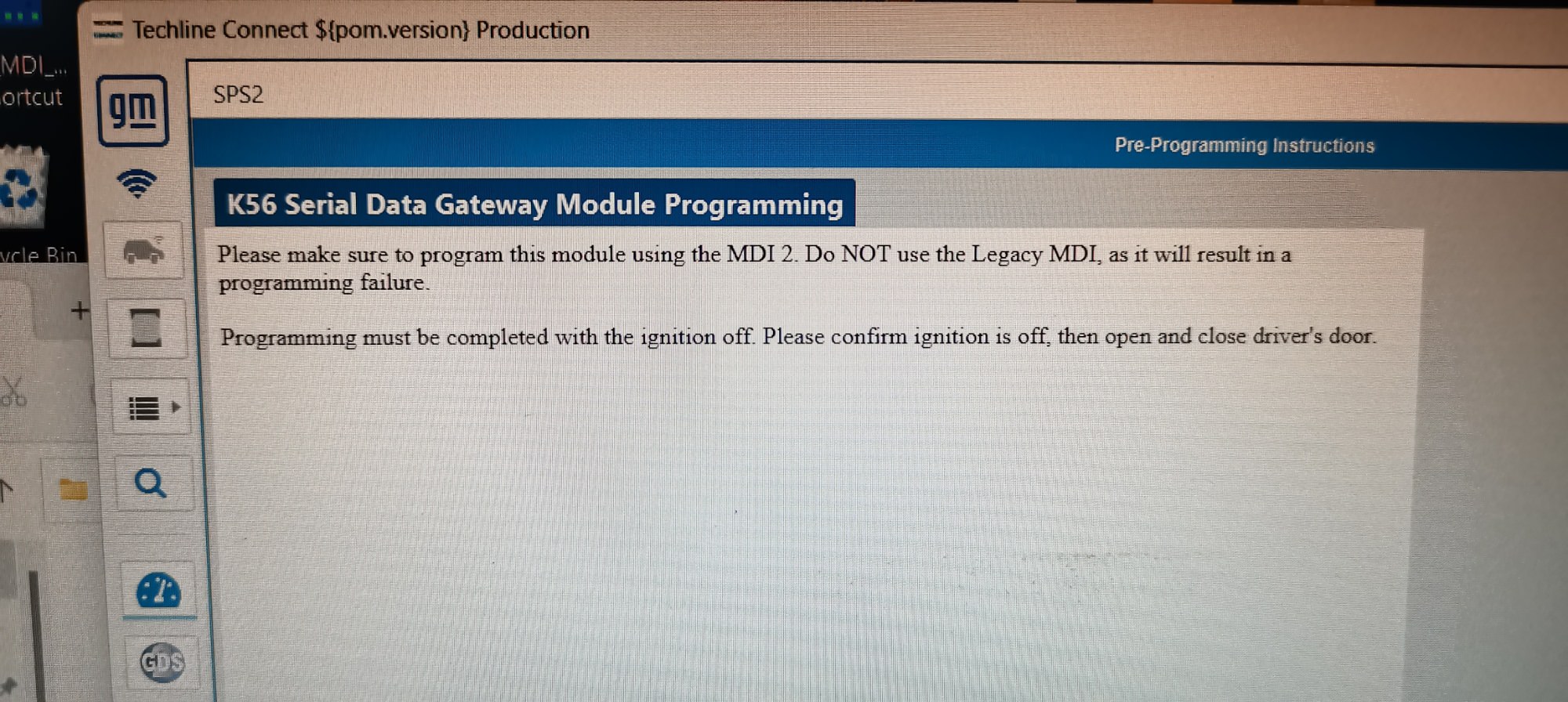

The Astra K, Insignia B and others GM cars have a K56 module but they are global A like this :



But only isolates a little part of the can bus low speed.

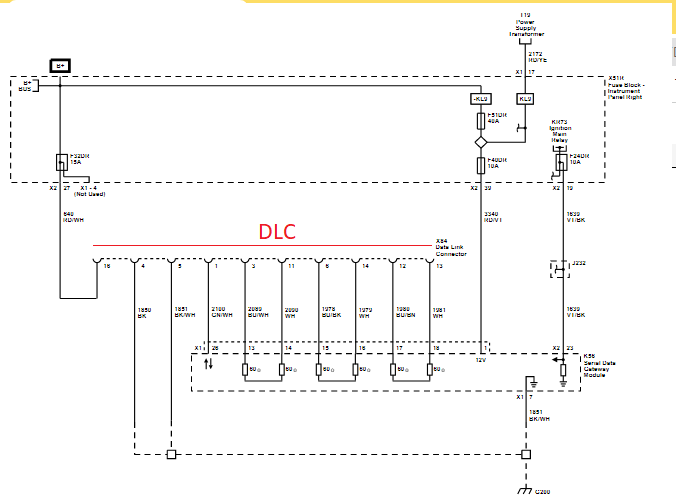

As i saw, the K56 in global B it's totally different. the DLC connector goes to this module, and from this modules, communicates with the rest of the can bus lines



On 24/2/2023 at 8:57, Arbe_gtc said:

Los Astra K, Insignia B y otros autos de GM tienen un módulo K56 pero son A globales así :



Pero solo aísla una pequeña parte del can bus de baja velocidad.

Como vi, el K56 en global B es totalmente diferente. el conector DLC va a este modulo, y desde este modulo se comunica con el resto de lineas can bus

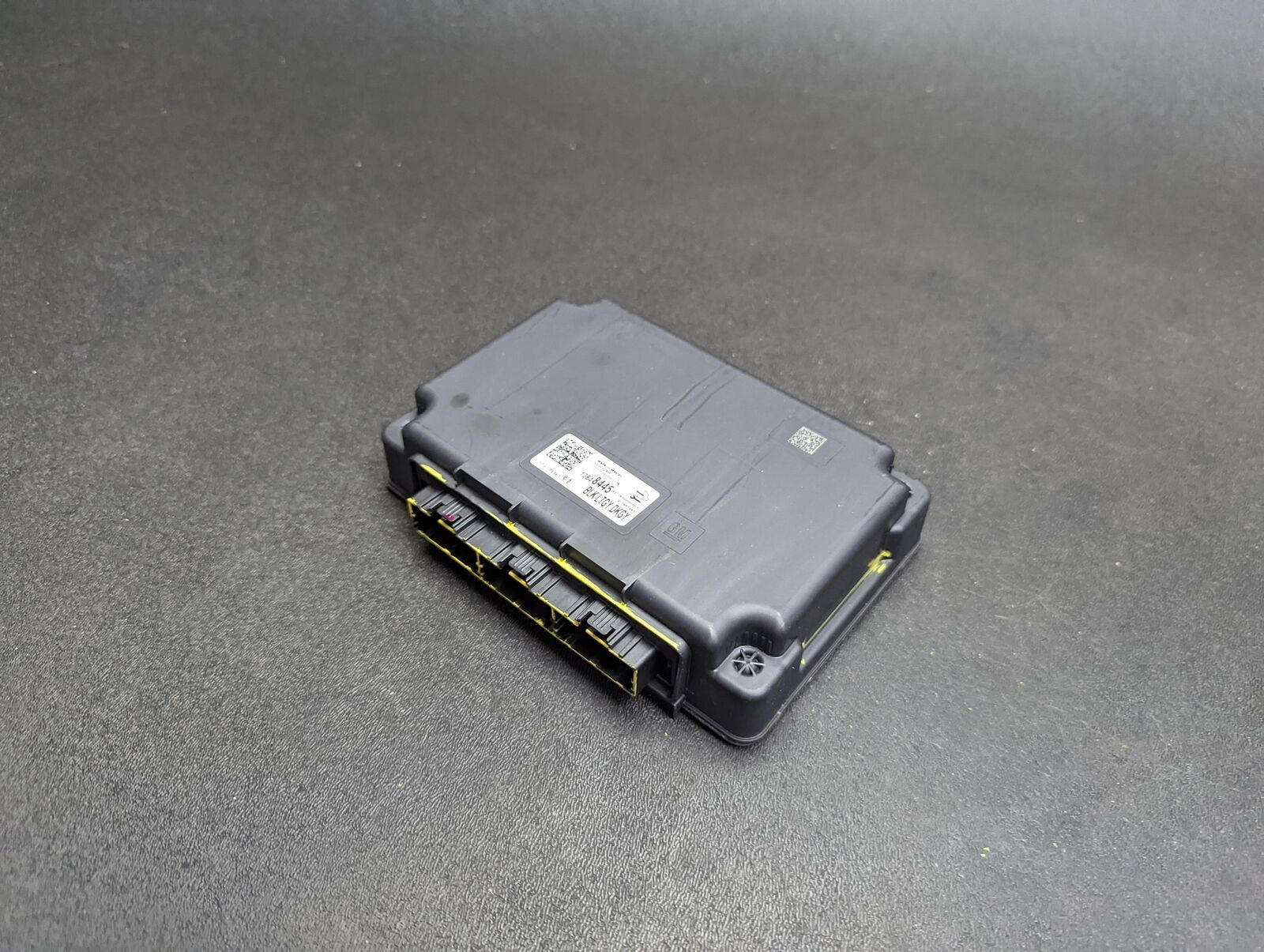

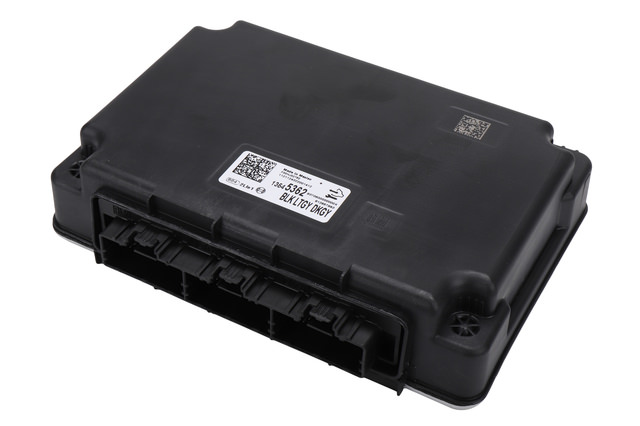

can someone confirm if this is the gateway on a global platform B?

Bro are you sure you are sharing gateway module picture?

This is Steering Column Tilt Wheel and Telescope Control Module.

Send vin to confirm

Do you guys know if this gateway module is required to read global b modules on the bench? Can you not select the w/o gateway option in dps to read any global b module directly?

I dont understand it's purpose, is it for managing too much information on the bus?

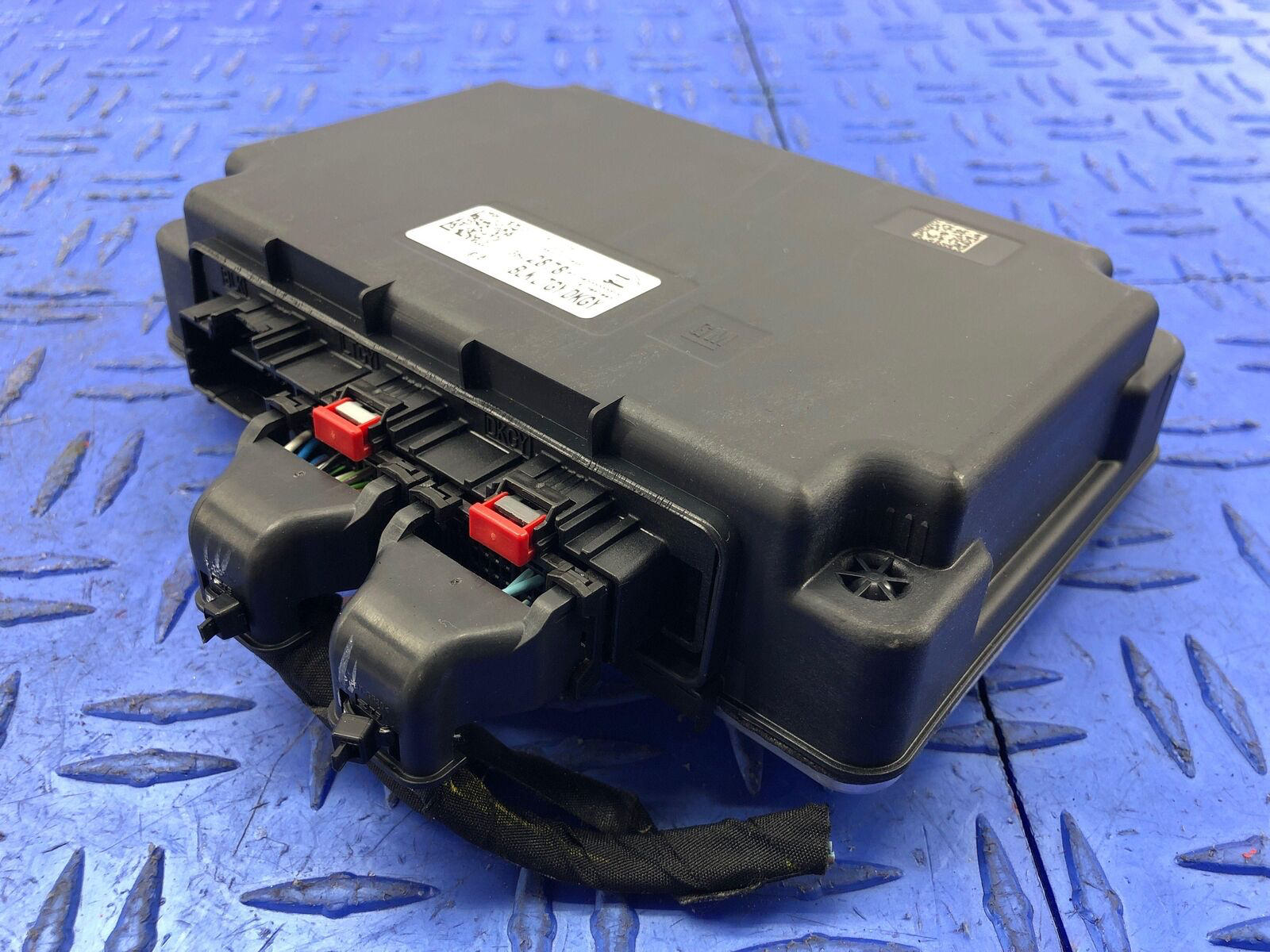

From reading the GM docs, it seems all the modules communicate through the serial data gateway module. I also saw a reference for "service mode". Maybe the gateway module sends some commands to activate service mode for programming. I have one of these global-B 3-port gateway module on the way coming. I'll find out more when it arrives.
