DPS 4.46

Troy

Got the file to run

see attached files

showing Calibrate Device on screen now

Found I had bad used hmi

changed it out and after running your program its ok

Thanks for the help.

On 5/26/2021 at 11:07 PM, Alexpham said:

Thank you very much! I can't run the BCM VIN change TattooTroy.zip file because the DPS copies I received don't send the 5 byte seed/key. Can you tell me what else I need to set up?

Hello, I've probably faced the same problem. How did you manage to fix it?

On 2/17/2022 at 10:12 PM, Re Gloom said:

Hello, I've probably faced the same problem. How did you manage to fix it?

ProgramLog.Txt 9.07 kB · 0 downloads

You need to Identify problems:
  1. The CPU you are communicating with uses a 3 byte/5 byte seed key
  2. The DPS file is sending a 3 byte/5 byte seed key request.
  3. The security table looks up the seed key in the DPS file

The three problems solved will definitely stop the error you encounter.

Utility File Step=04 Opcode=27
  15:13:34.3<[.H..] 00 00 07 E0 27 01 [0006] FramePad
  15:13:34.3>[.H..] 00 00 07 E0 [0004] TxDone TxMsgType
  15:13:34.3>[.H..] 00 00 07 E8 67 01 9C 47 13 89 06 [0011]
>> GM 5-byte Security: Algo 80, Chal 9C47138906, Resp 0000000000 >> Status Invalid Prefix

Check in DPS: select security table, security algo..to check before program/edit DPS file.

hello, will there be an upgrade to DPS 4.50.0000

Hello! I have a question, does dsp work with the VXDIAG VCX Nano?

Thank you!

Thanks so much. Just started from this version for my Chevrolet captiva

8 minutes ago, kenjohn1204 said:

For some reason I can’t change the vin on my modules.  I can read the vin, but when I go to change it.  The programs says programming complete.  Yet when I go to read the vin.  It is the same original vin.  Not sure what I am doing wrong.

Do you have DPS VIN change files for the modules?

DPS by itself cannot change VIN nor PIN in the modules. To change VIN or PIN, you need special custom DPS files.

Here is example for changing VIN in HVAC.

6 minutes ago, kenjohn1204 said:

I did all that was in the video.

1. read info

2. input new vin

3. load bcm file from Dps archives.

4. Hit program.



everything goes ok and it looks like it is programmed.  Yet when I go to “read info”, old vin is still there.

Post the DPS ProgramLog file so I can see the error log.

31 minutes ago, kenjohn1204 said:

here it goes

Those DPS Mec files "ECM_MecToZero.BIN" will not change the VIN.

To change VIN with DPS you need VIN change files that are for sale in Downloads section.

https://www.cameraloops.ru/files

Or you can submit an order with the module's utility file, then I can create the VIN change file for that module.

so I have to pay for  download this version although was saying its free?

6 hours ago, TROLL Gazali said:

so I have to pay for  download this version although was saying its free?



Goodbye, and do not come back to this website. TROLLs 🧌 are not welcome here.

7 minutes ago, bahnsro said:

Hello Troy.

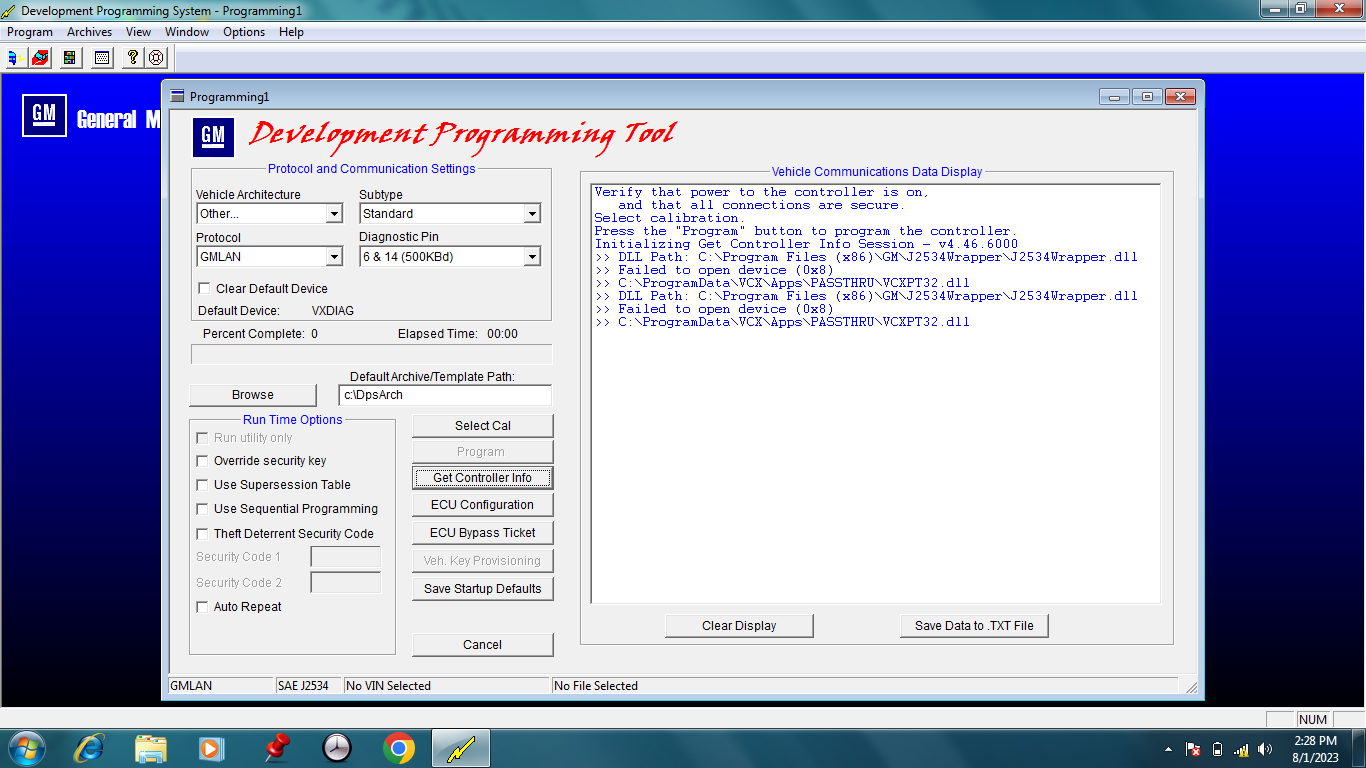

New here, trying to read the IPC. Using VCX Nano... keep getting error message. pls see pic. can you advise? Thanks...

Go to http://www.vxdiag.net download vx manager, and install and activate the interface.

8 minutes ago, bahnsro said:

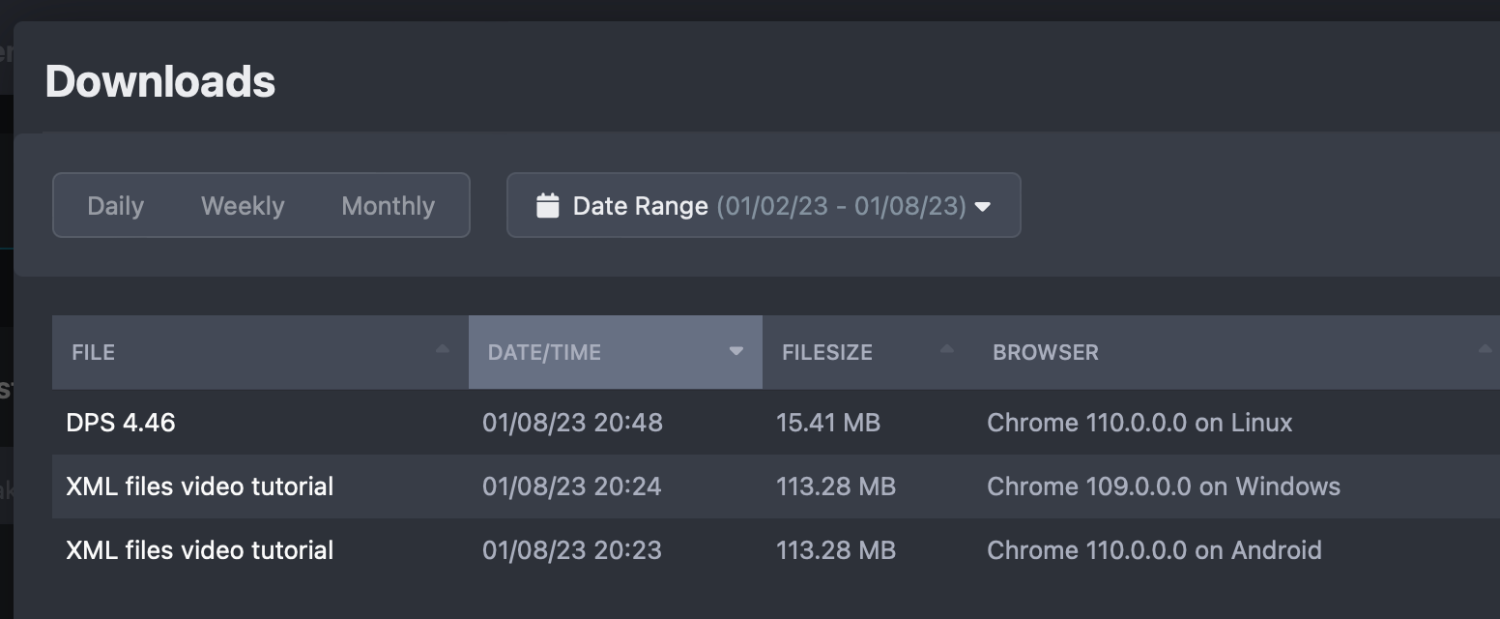

The logs state you already downloaded three files today, including paid file. You have to wait until tomorrow to download more files.

You cannot pull files from a cluster. You can only use GM sps to get those files.

On 2/2/2022 at 1:26 PM, Troy said:

Did you copy and paste the cracked dps exe and other files to the dps folder?

When that box pops up about licence just click OK.

Can you link a quick video of how to this pls?
