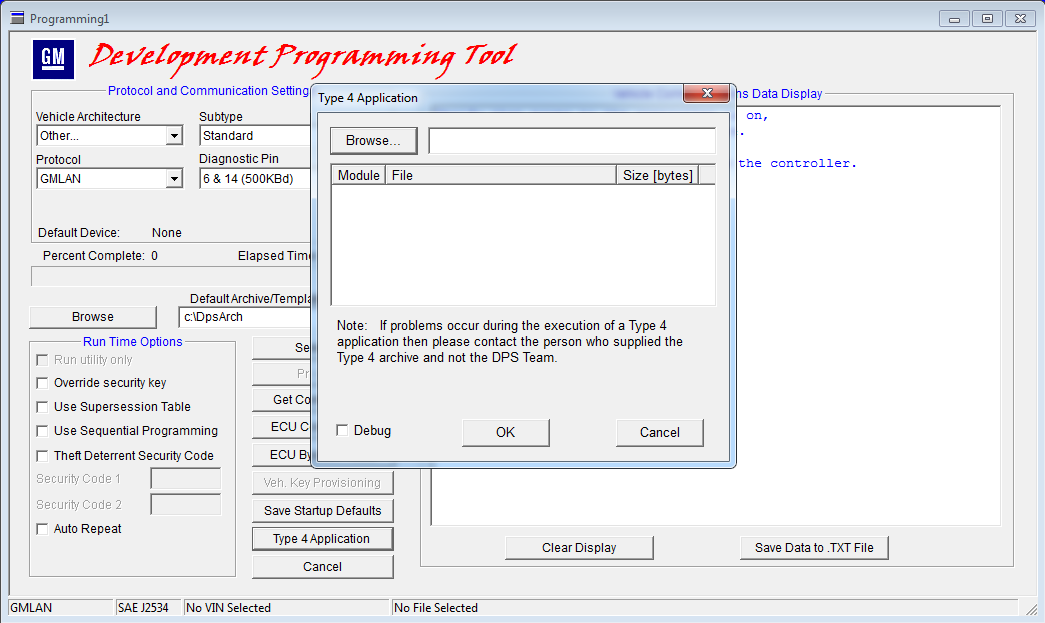

Type4 ECU/ECM Removal

1 Screenshot

Type4 ECU/ECM Removal

The SPS function for removing the ECM/ECU module from the vehicle.

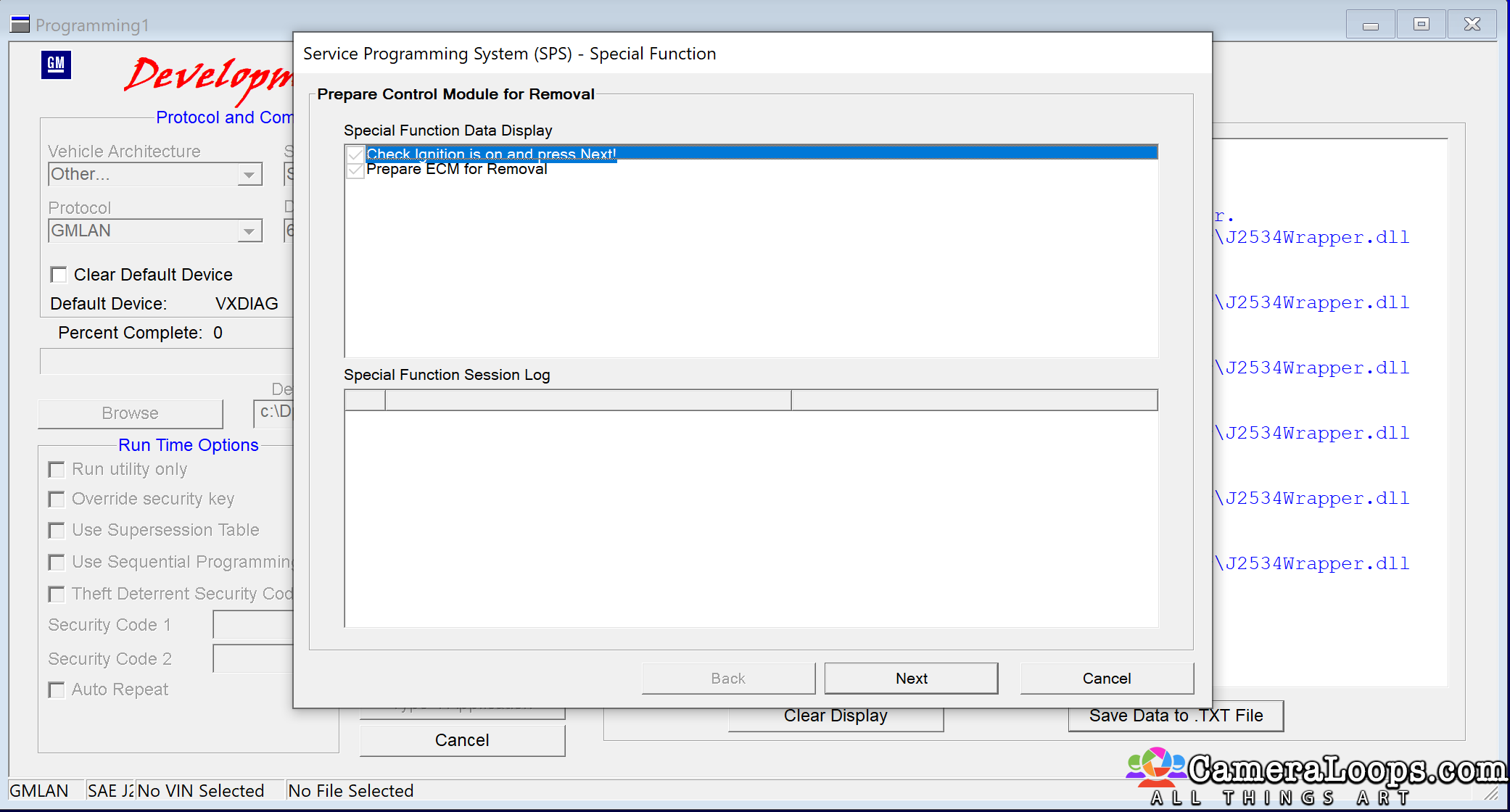

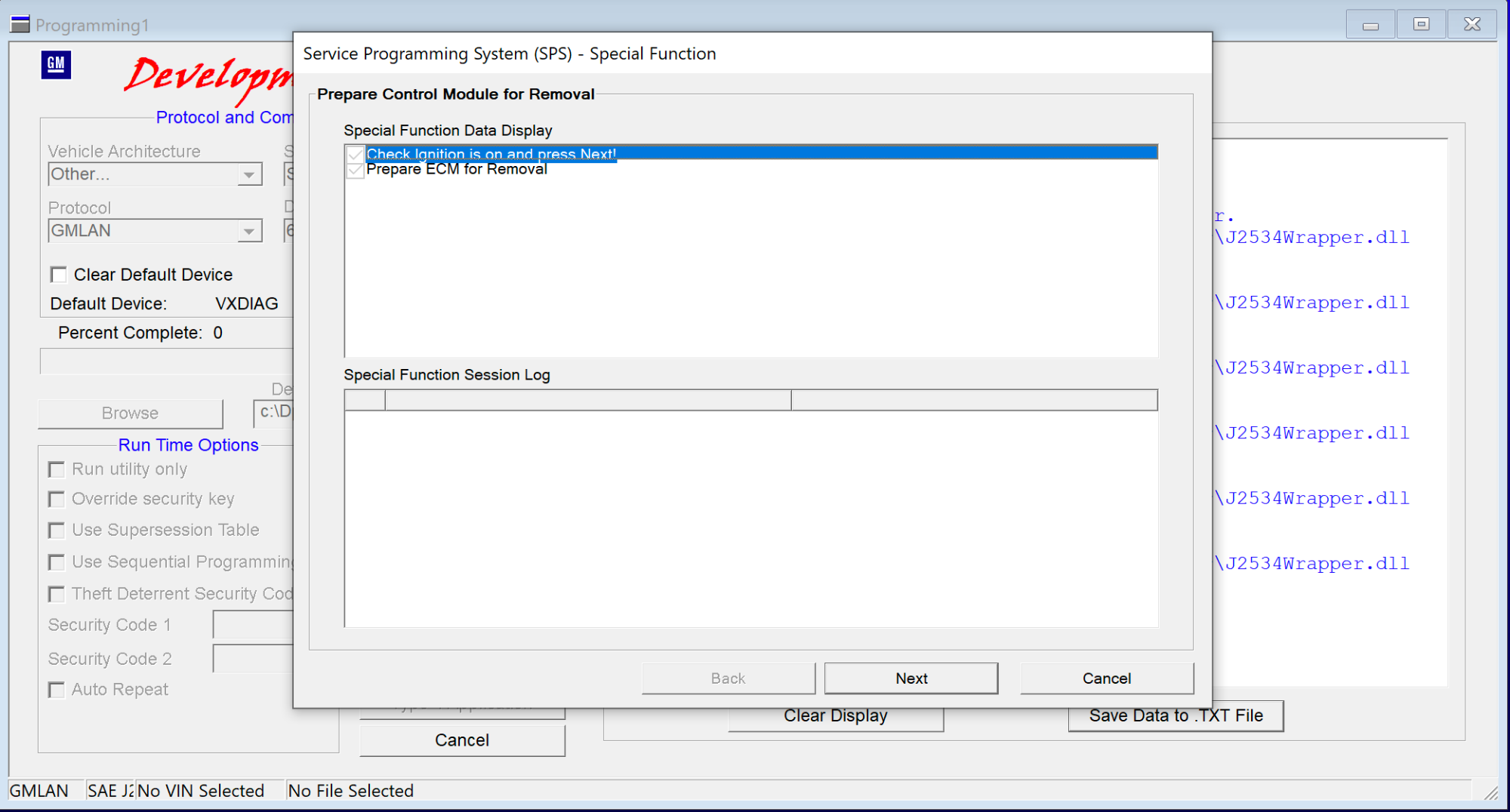

Screenshot 2022-02-23 at 3.03.15 am.png

User Feedback

Recommended Comments

Carfixr1977 Rising Star

Carfixr1977

Member

Hello to all, just joined this amazing place,

Is the 4.48 DPS  Tool able to edit Vin on second hand

E40,E55,E69 Ecm?

Troy Grand Master

4 hours ago, Carfixr1977 said:

Hello to all, just joined this amazing place,

Is the 4.48 DPS  Tool able to edit Vin on second hand

E40,E55,E69 Ecm?

Yes possible, but no one knows how to do it yet with DPS

nostra Top Member

+nostra

+Purchaser

what new in that version compare at the 4.46 DPS version ? thank you

jemeca Rising Star

jemeca

Member

hola me acabo de unir en este lugar alguien me puede decir si puedo hacer con dps la e38 cuando esta se bloquea

Nasstrac Top Member

+Nasstrac

+Contributor

  • Contributor

Hi Troy

for Type4 ECU/ECM Removal  after removal can i use the file to restore it to different module?

Thank you



Troy Grand Master

27 minutes ago, Nasstrac said:

Hi Troy

for Type4 ECU/ECM Removal  after removal can i use the file to restore it to different module?

Thank you



I don’t know as I’ve never tried that before.

Nasstrac Top Member

+Nasstrac

+Contributor

  • Contributor

Ok my best friend

Thank you!!!

Nasstrac Top Member

+Nasstrac

+Contributor

  • Contributor

I will try it and let you know

thanks

Lyubomir Krastanov Rookie

+Lyubomir Krastanov

+Contributor

  • Contributor
On 4/21/2022 at 4:07 PM, Nasstrac said:

Hi Troy

for Type4 ECU/ECM Removal  after removal can i use the file to restore it to different module?

Thank you



to learn to new vehicle as simple need to program with VIN and current calibrations. Should be same principe as removal sequence but using different dll for command 🙂 then immo learn

Nasstrac Top Member

+Nasstrac

+Contributor

  • Contributor

Thank you, So How i can use different dll comand ? any info

Thanks

Lyubomir Krastanov Rookie

+Lyubomir Krastanov

+Contributor

  • Contributor

You should have calibration files for your car for programming. Then just use program and that should rewrite vin number. Need to obtain few parts and test it.

Manhbuiduc Rising Star

+Manhbuiduc

+Purchaser

hi troy. i tried on few cars remove the ecm. it asked for security code. then i did it with sps and it passed. i don't know how your file works. it asks for security code secret.


Troy Grand Master

14 minutes ago, Manhbuiduc said:

hi troy. i tried on few cars remove the ecm. it asked for security code. then i did it with sps and it passed. i don't know how your file works. it asks for security code secret.

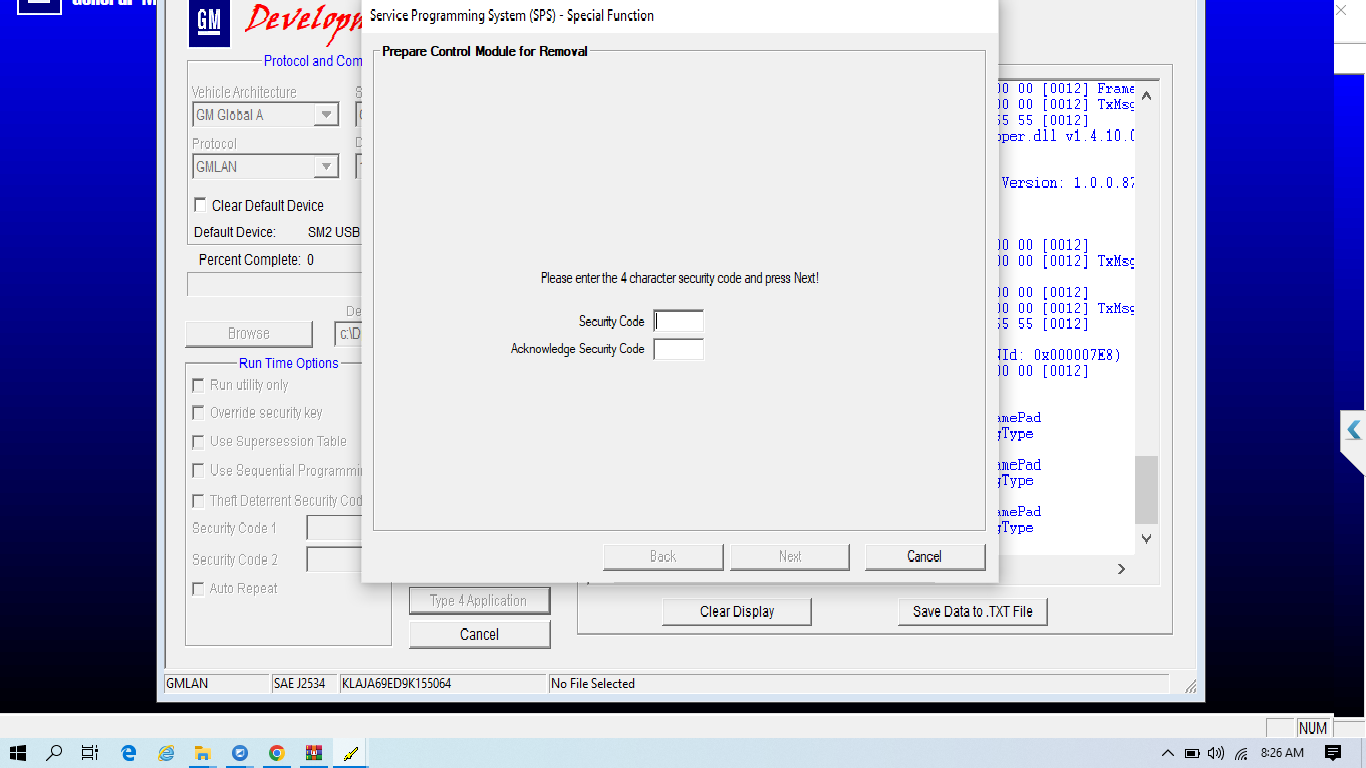

Yes, if you use it with DPS you must input the vehicle's 4-digit PIN.

Manhbuiduc Rising Star

+Manhbuiduc

+Purchaser

so where do i get it from?

Troy Grand Master

3 minutes ago, Manhbuiduc said:

so where do i get it from?



In Europe, the PIN code is written on the Car Pass card given to the buyer when they purchase the vehicle from GM.

I don't know about other regions.

Here is more info about the PIN.




kenjohn1204 Apprentice

+kenjohn1204

+Contributor

  • Contributor

Might be a stupid question but was does this app do?

Amplifier Apprentice

+Amplifier

+Contributor

  • Contributor

Won't work...

"Missing Type 4 application in VIT2!"


alexszymona Rising Star

alexszymona

Member

Can this be used to virginze a used ecu to program it using SPS to an other car?
If yes, can it be used without the donor car?

Amplifier Apprentice

+Amplifier

+Contributor

  • Contributor

Yes. You do not need donor car to virginze ECU. Tested on Astra 2011, 20cdti A20DTH.
