Oil pressure sensor

pronin272
pronin272
in GM Discussion Forum

Featured Replies

#1

The topic of software for activating the oil pressure sensor in the standard dashboard on diesel engines is very interesting. Physically, you need to replace the sensor with a 3-pin GENERAL MOTORS 55573719 (normally it is of the closing type with 1 contact) and lay new wiring to the engine control unit. It's quite simple. But how to prescribe all this?

  • Quote
  • Mention
    • Replies 5
    • Views 2k
    • Created
    • Last Reply

    Top Posters In This Topic

    Popular Days

    Most Popular Posts

    • pronin272
      pronin272

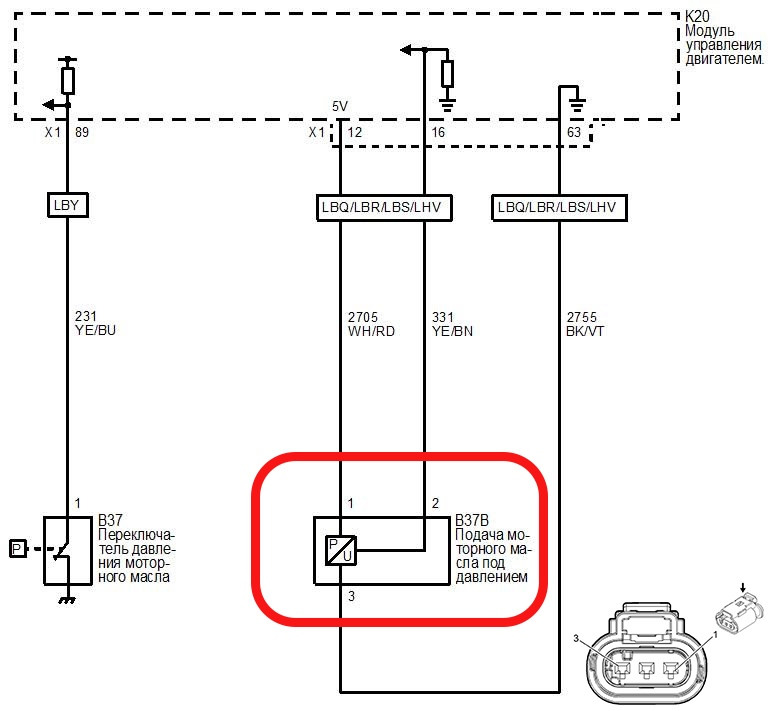

      It is wiring diagram on tis2web. Have 3 wires instead of one

    Posted Images

    • GM Car Hacking Expert
    #2

    Do you know if it will also work on petrol cars?

  • Quote
  • Mention
    • Author
    #3
    On 11.07.2021 at 06:27, Troy said:

    Вы знаете, будет ли он работать и на бензиновых автомобилях?

    I don't know. Now it work in diesel only

  • Quote
  • Mention
    • GM Car Hacking Expert
    #4
    13 minutes ago, pronin272 said:

    I don't know. Now it work in diesel only

    OK thanks.

    Do you know the ECU PIN number for the ECU wire connection?

  • Quote
  • Mention
    • Author
    #5
    On 12.07.2021 at 10:54, Troy said:

    Хорошо спасибо.

    Вы знаете PIN-код ЭБУ для подключения провода ЭБУ?

    It is wiring diagram on tis2web. Have 3 wires instead of one


  • Quote
  • Mention
    • Like 1
    • GM Car Hacking Expert
    #6

    Thanks

  • Quote
